COMBINATION SWITCH SYSTEM SYMPTOMS

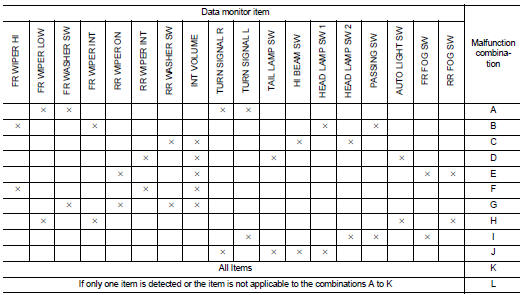

Symptom Table

1. Perform “Data Monitor” of CONSULT-III to check for any malfunctioning item.

2. Check the malfunction combinations.

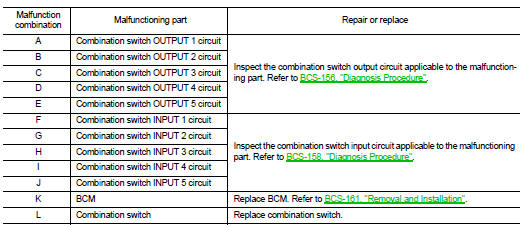

3. Identify the malfunctioning part from the agreed combination and repair or


3. Identify the malfunctioning part from the agreed combination and repair or replace the part.

Removal and installation


    Combination switch input circuit
    Diagnosis Procedure 1.CHECK INPUT 1 - 5 CIRCUIT FOR OPEN 1. Turn ignition switch OFF. 2. Disconnect BCM and combination switch connectors. 3. Check continuity between BCM harness connector and com ...
