Nissan Juke Service and Repair Manual : Ecu diagnosis information

AUDIO UNIT

Reference Value

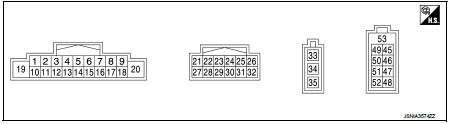

TERMINAL LAYOUT

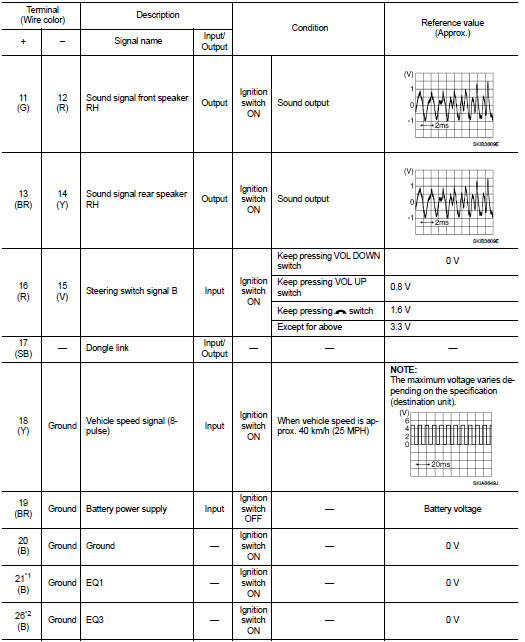

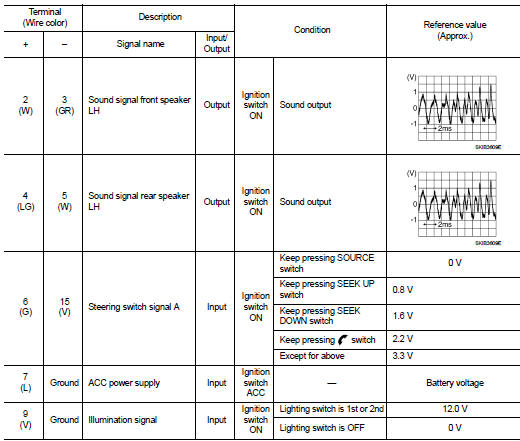

PHYSICAL VALUES

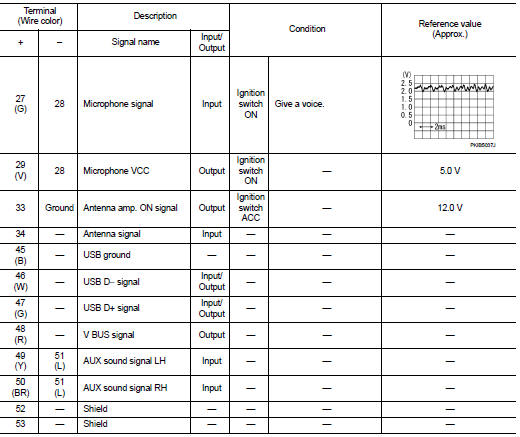

PHYSICAL VALUES



• *1: Models with USB connection function


• *1: Models with USB connection function • *2: Models without USB connection function

    Diagnosis system (audio unit)
    Models with usb connection function MODELS WITH USB CONNECTION FUNCTION : On Board Diagnosis Function Self-diagnosis mode can check the following items. METHOD OF STARTING 1. Start the engine. ...

    Wiring diagram
    AUDIO WITHOUT NAVIGATION Wiring Diagram For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to GI-12, "C ...
