Nissan Juke Service and Repair Manual : Wiring diagram

AUDIO WITHOUT NAVIGATION

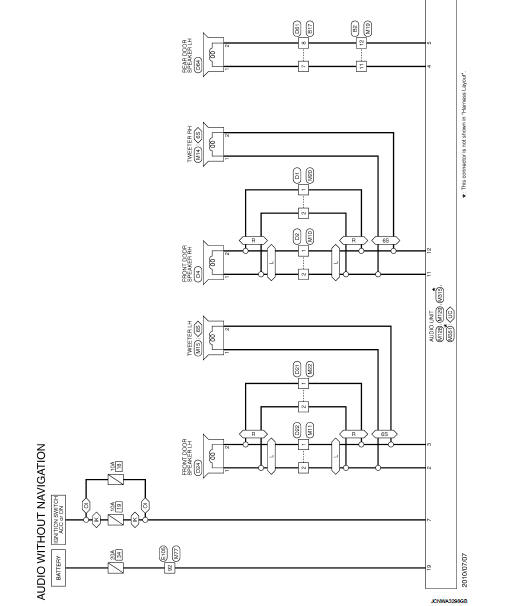

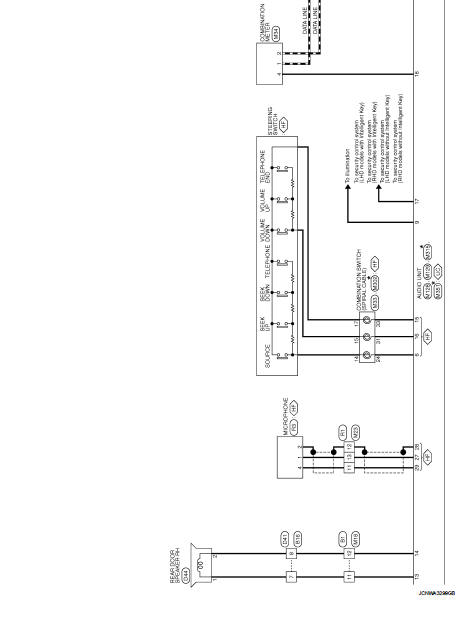

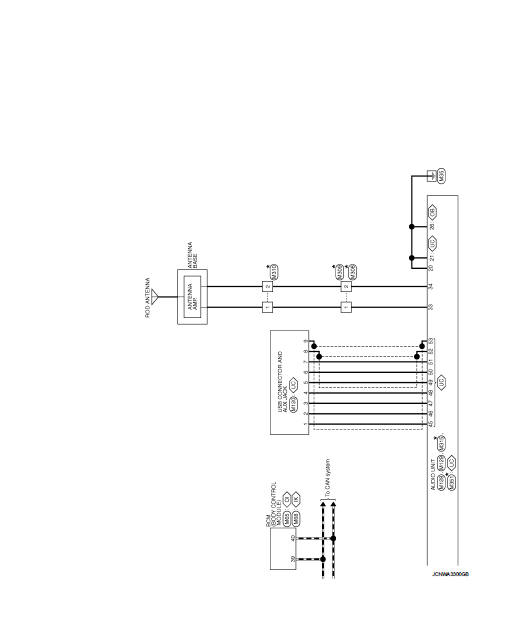

Wiring Diagram

For connector terminal arrangements, harness layouts, and alphabets in a described in wiring diagram), refer to GI-12, "Connector Information/Explanation (option abbreviation; if not
described in wiring diagram), refer to GI-12, "Connector Information/Explanation of Option Abbreviation".



Basic inspection


    Ecu diagnosis information
    AUDIO UNIT Reference Value TERMINAL LAYOUT PHYSICAL VALUES • *1: Models with USB connection function • *2: Models without USB connection function ...
