Nissan Juke Service and Repair Manual : Door mirror remote control switch (mirror switch/ changeover switch)

Component Inspection

1.CHECK MIRROR SWITCH & CHANGEOVER SWITCH

1. Turn ignition switch OFF.

2. Disconnect door mirror remote control switch connector.

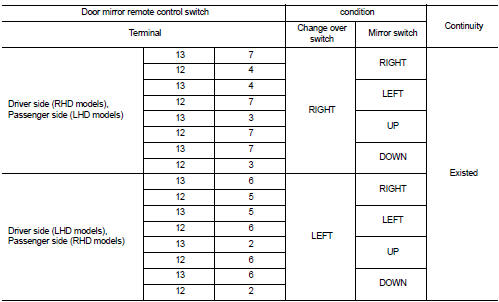

3. Check door mirror remote control switch.

Is the inspection result normal?


Is the inspection result normal? YES >> INSPECTION END.

NO >> Replace door mirror remote control switch.

    Door mirror (open/close motor)
    Component Function Check 1.CHECK DOOR MIRROR RETRACT FUNCTION 1. Turn ignition switch ON. 2. Operate open/close switch. Check that door mirror operates normally. Is the inspection result normal? ...
