Nissan Juke Service and Repair Manual : Component parts

Component Parts Location

1. Door request switch (driver side)

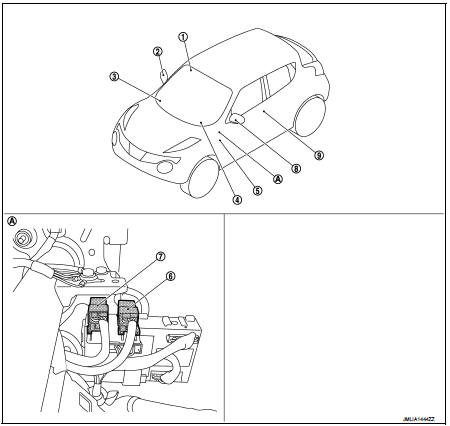

1. Door request switch (driver side) 2. Door mirror (driver side) 3. Remote keyless entry receiver Refer to DLK-21, "Component Parts Location" 4. Door mirror remote control switch 5. BCM Refer to BCS-6, "BODY CONTROL SYSTEM : Component Parts Location" 6. Door mirror close relay 7. Door mirror open relay 8. Door mirror (passenger side) 9. Door request switch (passenger side)

A. Front LH of passenger room

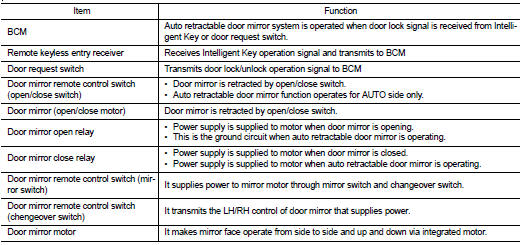

Component Description

System


    System
    AUTO RETRACTABLE DOOR MIRORR FUNCTION AUTO RETRACTABLE DOOR MIRORR FUNCTION : System Diagram AUTO RETRACTABLE DOOR MIRORR FUNCTION : System Description BCM retracts door mirror when door lock sig ...
