MULTI DISPLAY UNIT

Exploded View

REMOVAL

Refer to IP-12, "Exploded View".

DISASSEMBLY

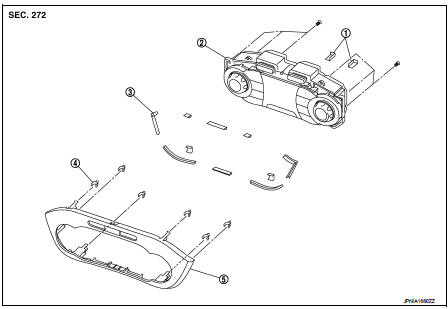

1. Silencer tape


1. Silencer tape
2. Multi display unit
3. Silencer tape
4. Clip
5. Control finisher

Removal and Installation

REMOVAL

Refer to IP-12, "Exploded View".

CAUTION:
• When performing the work, use a shop cloth to protect the parts from damage.

• Always fix the harness clamp in position.

INSTALLATION

Install in the reverse order of removal.
