Nissan Juke Service and Repair Manual : Combination switch

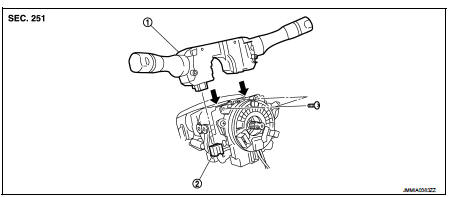

Exploded View
1. Combination switch 2. Combination switch connector
Removal and Installation
REMOVAL
1. Remove steering column cover. Refer to IP-13, "Removal and Installation".
2. Remove screws.
3. Disconnect the connector.
4. Pull up the combination switch to remove it.
INSTALLATION
Install in the reverse order of removal.
BCM (body control module)
Removal and Installation
CAUTION:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current
vehicle specification.
Refer to BCS-150, "Description".
REMOVAL (RHD MOD ...
