Nissan Juke Service and Repair Manual : Service data and specifications (SDS)
Alternator

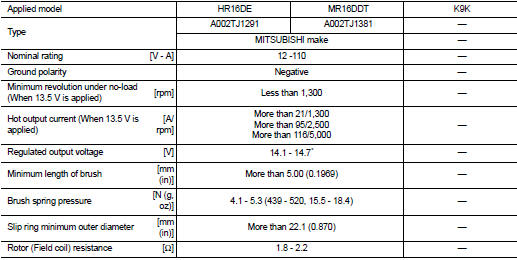

*: Adjustment range of power generation voltage variable control is 11.4 − 15.6 V.
Removal and installation
ALTERNATOR
HR16DE
HR16DE : Exploded View
REMOVAL
1. Alternator bracket mounting bolt
2. Alternator bracket
3. Alternator mounting bolt
4. Alternator
5. “B” terminal harness
6. “B” termi ...
