Nissan Juke Service and Repair Manual : Service data and specifications (SDS)

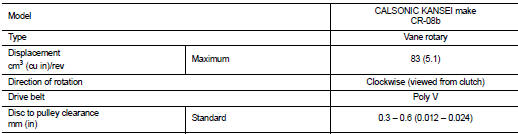

Compressor
Lubricant
Refrigerant
Engine Idling Speed
Refer to EC-807, "Idle Speed".
Belt Tension
Refer to EM-154, "Checking".
A/C unit assembly
Exploded View (Automatic Air Conditioning)
REMOVAL
LHD model
1. A/C unit assembly
2. Drain hose
3. Steering member
4. Instrument stay
: Clip
: N·m (kg-m, ft-lb)
DISASSEMBLY
LHD models
...
