Nissan Juke Service and Repair Manual : Service data and specifications (SDS)

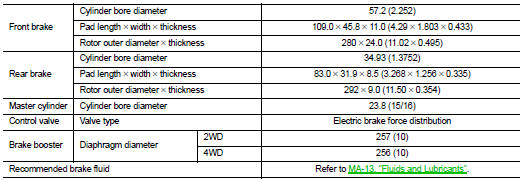

General Specifications

MR16DDT

HR16DE, K9K


HR16DE, K9K

Brake Pedal


Brake Pedal

Brake Booster


Brake Booster

2WD

4WD


4WD

Front Disc Brake


Front Disc Brake

MR16DDT

HR16DE, K9K


HR16DE, K9K

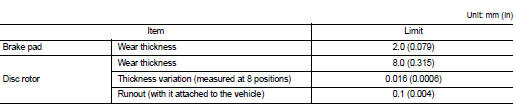

Rear Disc Brake


Rear Disc Brake

Brake System RHD


    Rear disc brake
    Brake pad : Exploded View 1. Sliding pin bolt 2. Cylinder body 3. Inner shim cover 4. Inner shim 5. Inner pad (with pad wear sensor) 6. Pad retainer 7. Torque member 8. Outer pad 9. O ...
