Nissan Juke Service and Repair Manual : Service data and specifications (SDS)

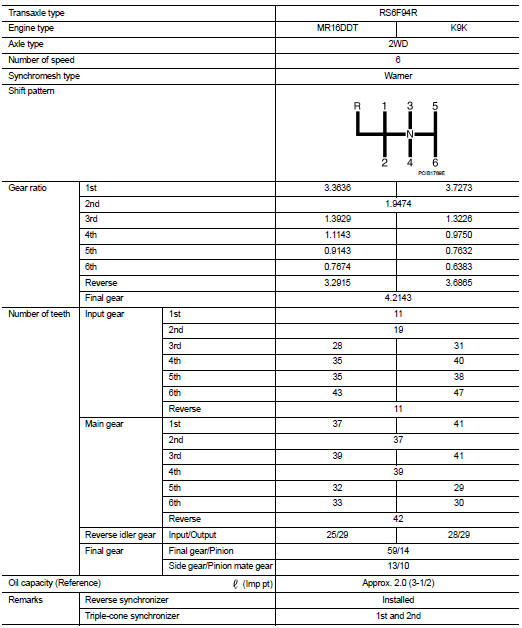

General Specifications

Transaxle & transmission CVT: RE0F10B


    Final drive
    Exploded View 1. Shim 2. Differential side bearing outer race (transaxle case side) 3. Differential side bearing inner race (transaxle case side) 4. Final gear 5. Differential case 6. Dif ...

    Other materials:

    Structure and operation
    Sectional View 1. 5th input gear 2. 5th-reverse synchronizer hub assembly 3. Input shaft 4. Mainshaft 5. 5th main gear 6. Mainshaft rear bearing 7. 4th main gear 8. 3rd-4th synchronizer hub assembly 9. 3rd main gear 10. 2nd main gear 11. 1st-2nd synchronizer hub assembly 12. Dif ...

    Removal and Installation
    REMOVAL 1. Separate the rear propeller shaft. Refer to DLN-121, "Removal and Installation". 2. Remove right side drive shaft. Refer to FAX-24, "RIGHT SIDE : Removal and Installation". 3. Remove catalyst convertor support bracket (RH). EM-35, "4WD : Removal and Insta ...

    Component parts
    Component Parts Location 1. Remote keyless entry receiver Refer to DLK-361, "Component Parts Location" (With super lock) or DLK-492, "Component Parts Location" (Without super lock). 2. Combination meter Refer to MWI-4, "METER SYSTEM : Component Parts Location" ...
