Nissan Juke Service and Repair Manual : Rear door

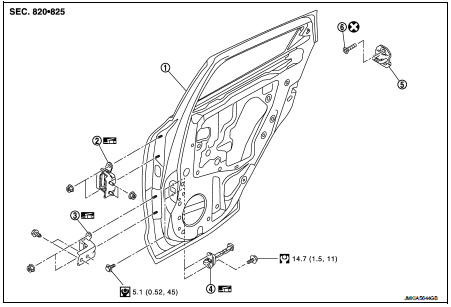

Exploded View

1. Rear door panel


1. Rear door panel
2. Door hinge (upper)
3. Door hinge (lower)
4. Door check link
5. Door striker
6. TORX bolt

: N·m (kg-m, in-lb): Do not reuse
N·m (kg-m, ft-lb): N·m (kg-m, in-lb)
: Body grease N·m (kg-m, ft-lb)
Door assembly: Body grease


Door assembly

DOOR ASSEMBLY : Removal and Installation

CAUTION:
• Perform work with 2 workers, because of it’s heavy weight.

• When removing and installing rear door assembly, support door with a jack and shop cloth to protect door and body

.

REMOVAL

1. Remove rear door harness grommet (2) from body side outer (1), and then pull out rear door harness.

2. Disconnect rear door harness connector.


2. Disconnect rear door harness connector.

3. Remove mounting bolt of door check link on the vehicle.


3. Remove mounting bolt of door check link on the vehicle.

4. Remove door hinge mounting bolts (door side), and then remove rear door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
• Apply anticorrosive agent onto the mounting surface.

• Check rear door open/close, lock/unlock operation after installation.

• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.

• After installation, perform the fitting adjustment. Refer to DLK-459, "DOOR ASSEMBLY : Adjustment".

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

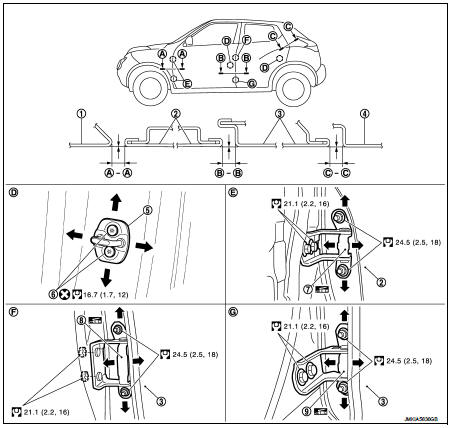

DOOR ASSEMBLY : Adjustment

1. Front fender


1. Front fender
2. Front door
3. Rear door
4. Body side outer
5. Door striker
6. TORX bolt
7. Front door hinge
8. Rear door hinge (upper) 9. Rear door hinge (lower)

: N·m (kg-m, ft-lb): Do not reuse
: Body grease: N·m (kg-m, ft-lb)
Check the clearance and surface height between front door and each part by: Body grease


Check the clearance and surface height between front door and each part by visually and touching.

If the clearance and the surface height are out of specification, adjust them according to the procedures shown below.

FITTING ADJUSTMENT PROCEDURE


FITTING ADJUSTMENT PROCEDURE

1. Remove center pillar lower garnish. Refer to INT-20, "CENTER PILLAR LOWER GARNISH : Removal and Installation".

2. Loosen door hinge mounting nuts on door side.

3. Adjust the surface height of rear door according to the fitting standard dimension.

4. Temporarily tighten door hinge mounting nuts on door side.

5. Loosen door hinge mounting nuts and bolts on body side.

6. Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7. After adjustment tighten bolts and nuts to the specified torque.

CAUTION

:
• After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts and nuts.

• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.

8. Install center pillar lower garnish. Refer to INT-20, "CENTER PILLAR LOWER GARNISH : Removal and Installation".

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

Door striker

DOOR STRIKER : Removal and Installation

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
• Check rear door open/close, lock/unlock operation after installation.

• After installation, be sure to perform the fitting adjustment. Refer to DLK-459, "DOOR ASSEMBLY : Adjustment".

Door hinge

DOOR HINGE : Removal and Installation

CAUTION:
• Perform work with 2 workers, because of it’s heavy weight.

• When removing and installing rear door assembly, support door with a jack and shop cloth to protect door and body

.

REMOVAL

1. Remove rear door assembly. Refer to DLK-457, "DOOR ASSEMBLY : Removal and Installation".

2. Remove center pillar lower garnish. Refer to INT-20, "CENTER PILLAR LOWER GARNISH : Removal and Installation".

3. Remove rear door hinge mounting bolts and nuts (body side), and then remove door hinge.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
• Apply anticorrosive agent onto the mounting surface.

• Check rear door open/close operation after installation.

• When removing and installing rear door assembly, perform the fitting adjustment. Refer to DLK-459, "DOOR ASSEMBLY : Adjustment".

• After installing, apply the touch-up paint (the body color) onto the head of door hinge mounting nuts.

• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.

: Grease up point


Door check link


Door check link

DOOR CHECK LINK : Removal and Installation

REMOVAL

1. Fully close the rear door window.

2. Remove rear door finisher. Refer to INT-16, "Removal and Installation".

3. Remove mounting bolts of rear door speaker, and then remove rear door speaker.

4. Disconnect harness connector of rear door speaker.

5. Remove mounting bolt of the check link on the vehicle.

6. Remove mounting bolts of the check link on door panel.

7. Take door check link (1) out from the hole of door panel (2).

INSTALLATION


INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
• Check rear door open/close operation after installation.

• Check door check link rotating part for poor lubrication. If necessary, apply grease.

: Grease up point


Back door


    Front door
    Exploded View 1. Front door panel 2. Grommet 3. Door hinge (upper) 4. Door hinge (lower) 5. Door check link 6. Bumper rubber 7. Door pad 8. Door striker 9. TORX bolt 10. Grommet : D ...

    Back door
    Exploded View REMOVAL 1. Back door weather-strip 2. Back door stay 3. Back door stay lower bracket 4. Bumper rubber 5. Back door striker 6. Back door panel 7. Back door hinge 8. Hole c ...
