Nissan Juke Service and Repair Manual : Power supply and ground circuit

Combination meter

COMBINATION METER : Diagnosis Procedure

1.CHECK FUSE

Check for blown fuses.

Is the inspection result normal?


Is the inspection result normal? YES >> GO TO 2.

NO >> Be sure to eliminate cause of malfunction before installing new fuse.

2.CHECK POWER SUPPLY CIRCUIT

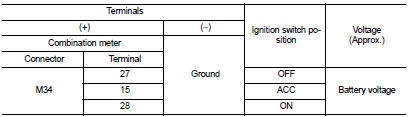

Check voltage between combination meter harness connector and ground.

Is the inspection result normal?


Is the inspection result normal? YES >> GO TO 3.

NO >> Check harness between combination meter and fuse.

3.CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect combination meter connector.

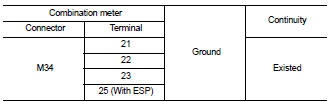

3. Check continuity between combination meter harness connector and ground.

Is the inspection result normal?


Is the inspection result normal? YES >> INSPECTION END

NO >> Repair harness or connector.
