Nissan Juke Service and Repair Manual : P0711 transmission fluid temperature sensor A

DTC Logic

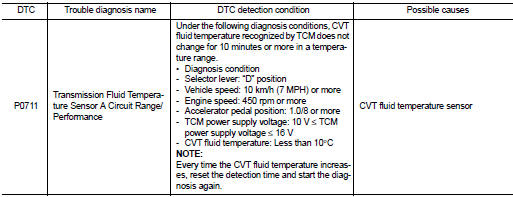

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE


DTC CONFIRMATION PROCEDURE

1.PREPARATION BEFORE WORK

If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

1. Start the engine.

2. Drive the vehicle.

3. Maintain the following conditions for a total of 10 minutes or more.

Selector lever : “D” position Accelerator pedal position : 1.0/8 or more Vehicle speed : 20 km/h (12 MPH) or more

4. Stop the vehicle.

5. Check the first trip DTC.

Is “P0711” detected? YES >> Go to TM-419, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.CHECK CVT FLUID TEMPERATURE SENSOR

1. Turn ignition switch OFF.

2. Disconnect the CVT unit connector.

3. Check the CVT fluid temperature sensor. Refer to TM-405, "Component Inspection (CVT Fluid Temperature Sensor)".

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-42, "Intermittent Incident".

NO >> Repair or replace the malfunctioning parts.

Component Inspection (CVT Fluid Temperature Sensor)

1.CHECK CVT FLUID TEMPERATURE SENSOR

Check resistance between the CVT unit connector terminals.

Is the inspection result normal?


Is the inspection result normal? YES >> INSPECTION END

NO >> There is a malfunction of the CVT fluid temperature sensor. Replace the transaxle assembly.

Refer to TM-508, "Removal and Installation".
