Nissan Juke Service and Repair Manual : Hazard switch

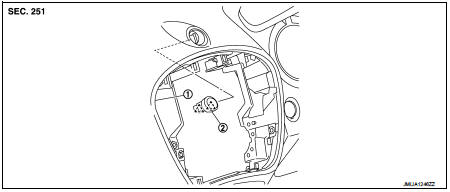

Exploded View

1. Instrument panel assembly


1. Instrument panel assembly 2. Hazard switch

Removal and Installation: Pawl


Removal and Installation

REMOVAL

1. Remove Audio unit. Refer to AV-38, "Removal and Installation".

2. Disengage fixing pawls, and then remove hazard switch from instrument panel inside to outside.

INSTALLATION

Install in the reverse order of removal.

    Lighting & turn signal switch
    Removal and Installation REMOVAL Remove light & turn signal switch. Refer to BCS-94, "Removal and Installation". INSTALLATION Install in the reverse order of removal. ...

    Side turn signal lamp
    Exploded View 1. Side turn signal lamp bulb 2. Side turn signal lamp hous Removal and Installation CAUTION: Disconnect battery negative terminal or remove the fuse. REMOVAL 1. Remove the sid ...
