Nissan Juke Service and Repair Manual : Fuse, fusible link and relay box

Fuse and Fusible Link Arrangement

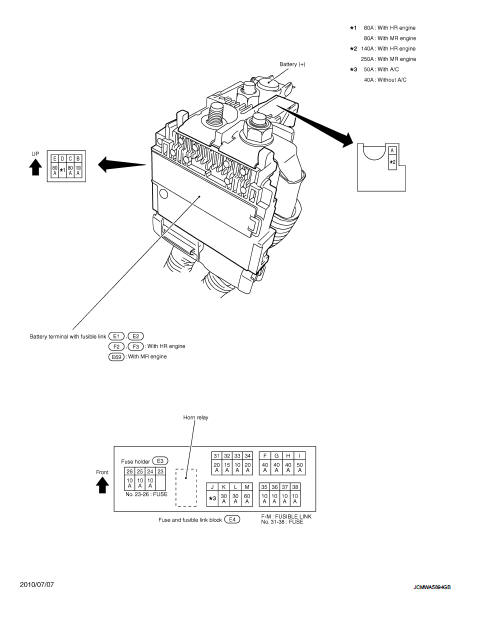

HR ENGINE AND MR ENGINE WITH CVT

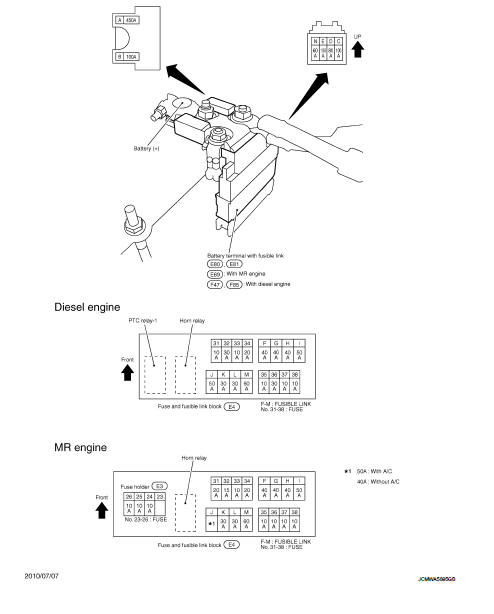

DIESEL ENGINE AND MR ENGINE WITH M/T


DIESEL ENGINE AND MR ENGINE WITH M/T

IPDM E/R (intelligent power distribution module engine


    Fuse block - junction box (J/B)
    Fuse, Connector and Terminal Arrangement ...

    IPDM E/R (intelligent power distribution module engine room)
    Fuse, Connector and Terminal Arrangement ...
