Nissan Juke Service and Repair Manual : Exterior lighting system symptoms

Without daytime running light system

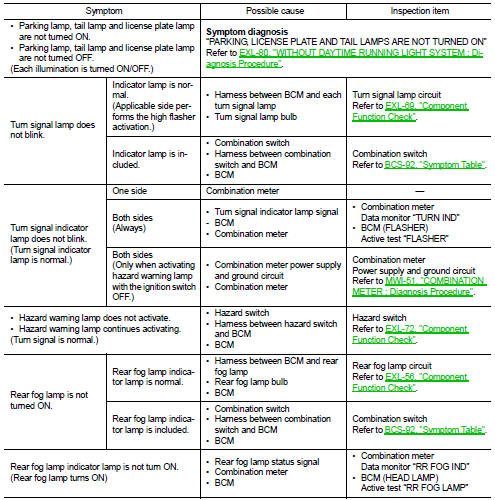

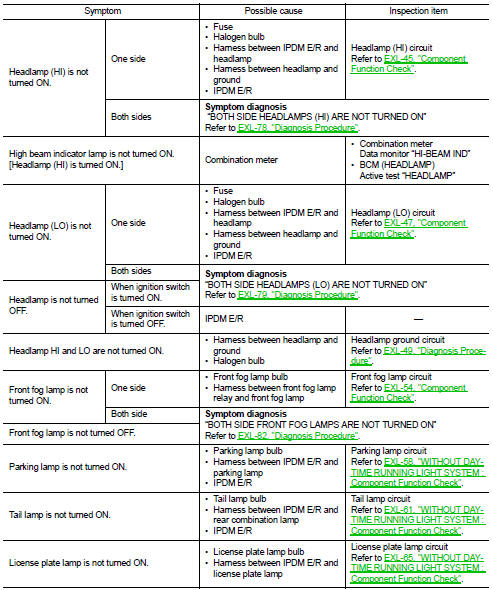

WITHOUT DAYTIME RUNNING LIGHT SYSTEM : Symptom Table

CAUTION:
Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.


With daytime running light system


With daytime running light system

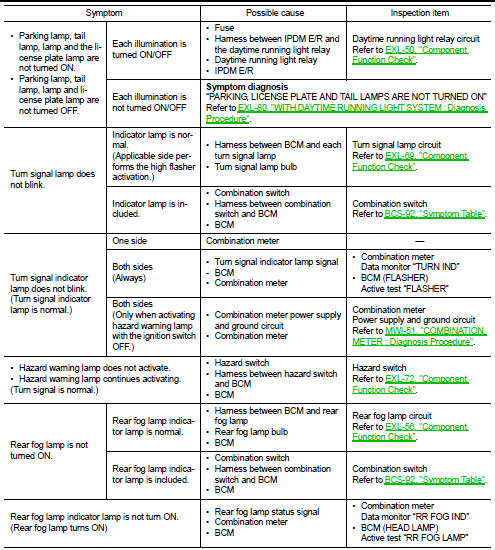

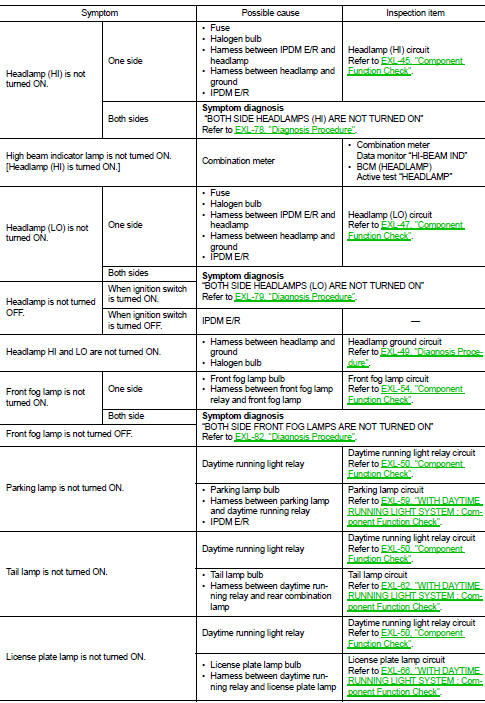

WITH DAYTIME RUNNING LIGHT SYSTEM : Symptom Table

CAUTION:
Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.


Both side headlamps (HI) are not turned on


    Both side headlamps (HI) are not turned on
    Description Both side headlamps (HI) are not turned ON when setting to the lighting switch HI or PASS. Diagnosis Procedure 1.COMBINATION SWITCH INSPECTION Check the combination switch. Refer to ...
