Nissan Juke Service and Repair Manual : Diagnosis systeM (BCM) (without intelligent key system)

Nissan Juke Service and Repair Manual / Defogger / System description / Diagnosis systeM (BCM) (without intelligent key system)

Common item

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

APPLICATION ITEM

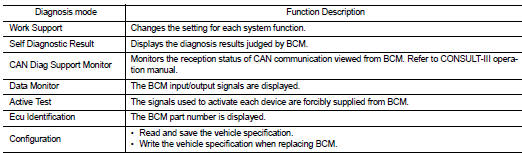

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION


SYSTEM APPLICATION

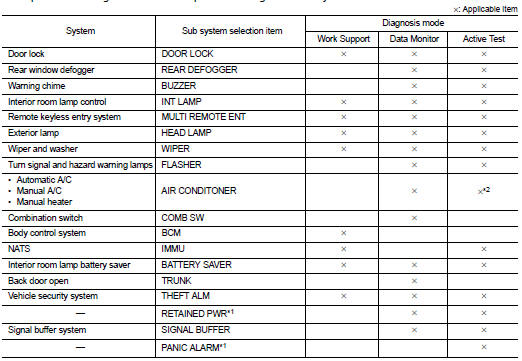

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.

• *1: This item is displayed, but is not used.


• *1: This item is displayed, but is not used.

• *2: For models with automatic A/C, this mode is not used.

Rear window defogger

REAR WINDOW DEFOGGER : CONSULT-III Function (BCM - REAR DEFOGGER)

Data monitor

ACTIVE TEST


ACTIVE TEST
