COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

APPLICATION ITEM

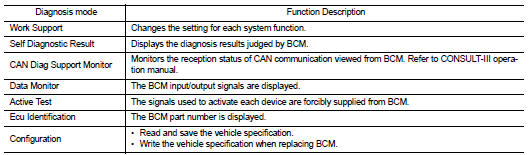

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION


SYSTEM APPLICATION

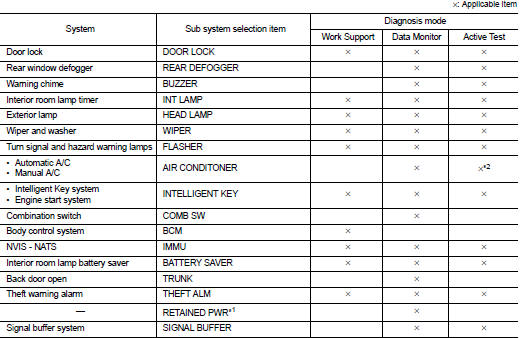

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.

NOTE:


NOTE

:
• *1: This item is displayed, but not used.

• *2: For models with automatic A/C, this diagnosis mode is not used.

FREEZE FRAME DATA (FFD)

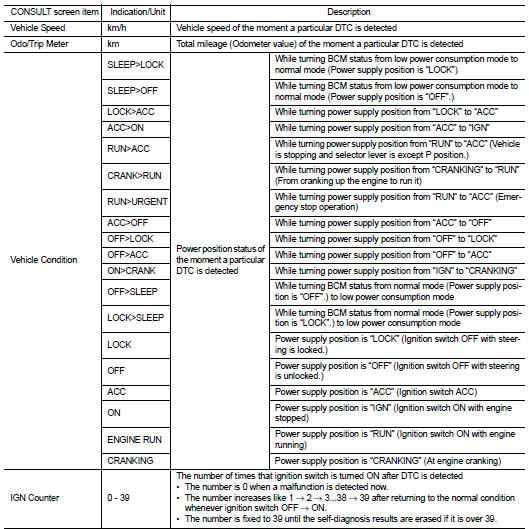

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on CONSULT-III.

Headlamp


Headlamp

HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)

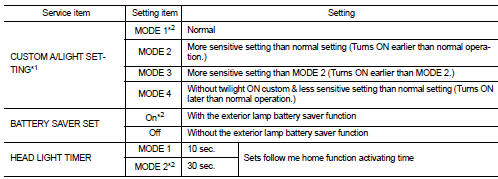

WORK SUPPORT

*1: For models is without auto light system, this item is displayed but work


*1: For models is without auto light system, this item is displayed but work support is not operated.

*2: Factory setting

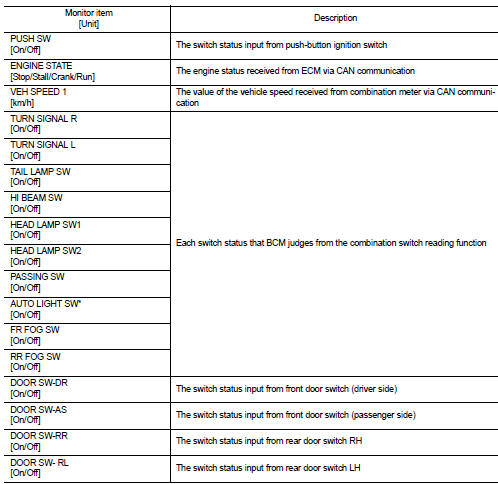

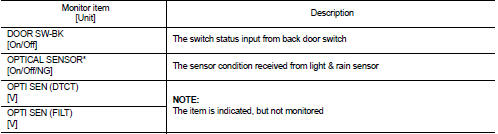

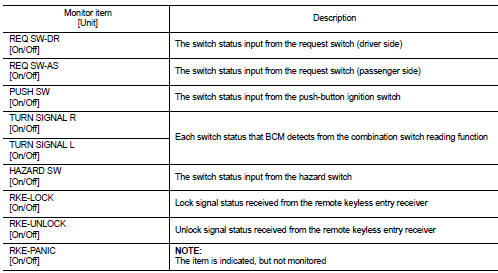

DATA MONITOR


*: For models without auto light system, this is not displayed.


*: For models without auto light system, this is not displayed.

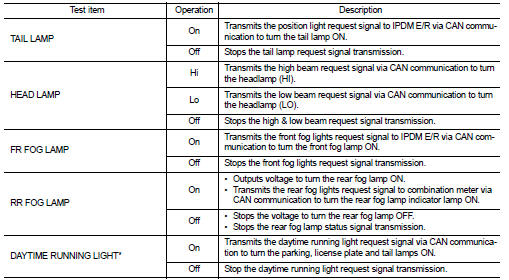

ACTIVE TEST

*: For models without daytime running light system, this item is not


*: For models without daytime running light system, this item is not displayed.

Flasher

FLASHER : CONSULT-III Function (BCM - FLASHER)

WORK SUPPORT

*: Factory setting


*: Factory setting DATA MONITOR

ACTIVE TEST


ACTIVE TEST
