Nissan Juke Service and Repair Manual : Component parts

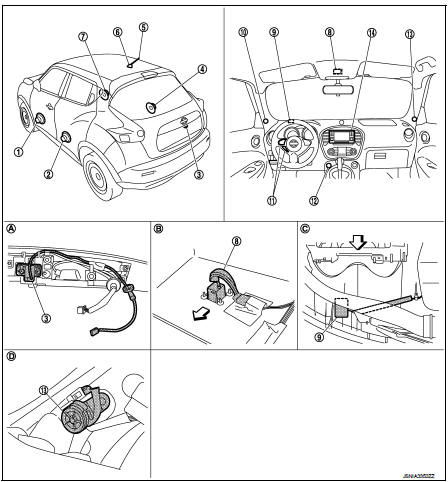

Component Parts Location

1. Front door speaker LH


1. Front door speaker LH 2. Rear door speaker LH 3. Rear view camera
4. Rear door speaker RH 5. Antenna rod
6. Antenna base (antenna amp.) 7. Front door speaker RH 8. Microphone
9. GPS antenna
10. Tweeter LH
11. Steering switch
12. USB connector and AUX jack 13. Tweeter RH
14. NAVI control unit

A. Back of back door finisher B. Back of headlining C. Instrument panel rear side D. Front pillar finisher removed condition

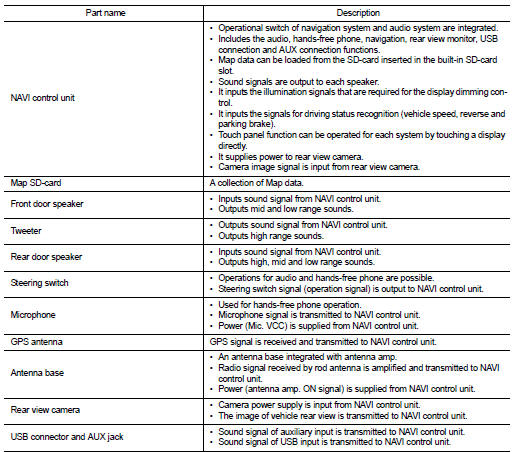

Component Description: Vehicle front
