Nissan Juke Service and Repair Manual : Component parts

Component Parts Location

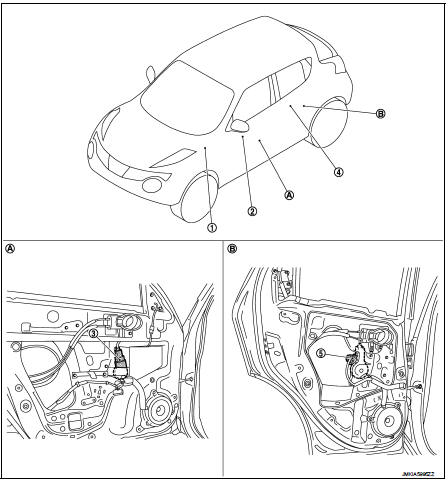

1. BCM


1. BCM Refer to BCS-6, "BODY CONTROL SYSTEM : Component Parts Location" (with Intelligent Key) or BCS-96, "BODY CONTROL SYSTEM : Component Parts Location" (without Intelligent Key)
2. Power window main switch 3. Front power window motor (driver side)
4. Rear power window switch LH 5. Rear power window motor LH

A. View with front door finisher removed B. View with rear door finisher removed

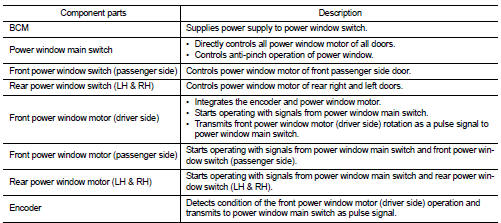

Component Description

System


    System
    POWER WINDOW SYSTEM POWER WINDOW SYSTEM : System Diagram POWER WINDOW SYSTEM : System Description • Power window system is activated by power window switch when ignition switch turns ON. • Pow ...
