Nissan Juke Service and Repair Manual : Component parts

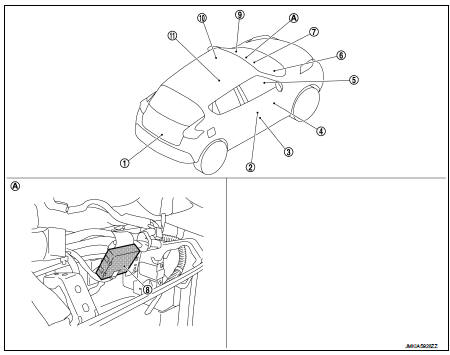

Component Parts Location

1. Back door lock assembly


1. Back door lock assembly 2. Front door lock assembly (driver side)
3. Front door switch (driver side) 4. Power window main switch (door lock/unlock switch) 5. Key switch
6. Combination meter
7. Door lock status indicator 8. Remote keyless entry receiver 9. BCM Refer to BCS-6, "BODY CONTROL SYSTEM : Component Parts Location" (with Intelligent Key) or BCS- 96, "BODY CONTROL SYSTEM : Component Parts Location" (without Intelligent Key)
10. Power window switch (passenger side) (door lock/unlock switch) 11. Air bag diagnosis sensor unit Refer to SRC-7, "Component Parts Location"

A. View with the glove box assembly removed

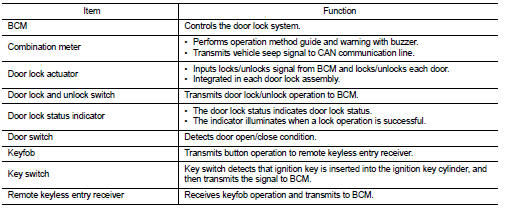

Component Description


Power door lock system


    Power door lock system
    System Diagram System Description DOOR LOCK FUNCTION • The door lock and unlock switch (driver side) is build into power window main switch. • The door lock and unlock switch (passenger side) ...
