Nissan Juke Service and Repair Manual : Component parts

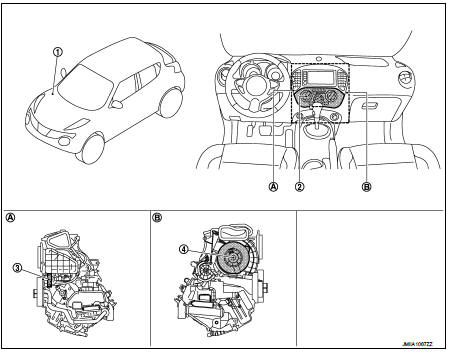

Component Part Location

1. BCM


1. BCM Refer to BCS-161, "Removal and Installation".

2. Heater control
3. Blower fan resistor
4. Blower motor

A. Left side of heater unit assembly B. Right side of heater unit assembly

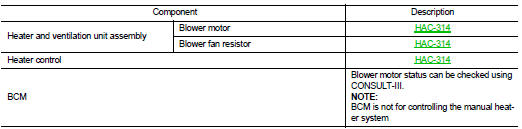

Component Description

Heater and ventilation unit assembly : Blower Motor


Heater and ventilation unit assembly : Blower Motor

• The blower motor utilizes a brush-less motor with a rotating magnet.

• Quietness is improved over previous motors where the brush was the point of


• Quietness is improved over previous motors where the brush was the point of contact and the coil rotated.

Heater and ventilation unit assembly : Blower Fan Resistor


Heater and ventilation unit assembly : Blower Fan Resistor

• Compact and lightweight resistor is adopted with outstanding ventilation.

• Temperature fuse is installed to protects the blower motor circuit.

Heater Control


Heater Control

Controls the heater control function.

    System
    System Description Fan speed of blower motor is changed by the combination of fan control dial (fan switch) operation and blower fan resistor control. Door Control SWITCHES AND THEIR CONTROL FUN ...
