Nissan Juke Service and Repair Manual : Component parts

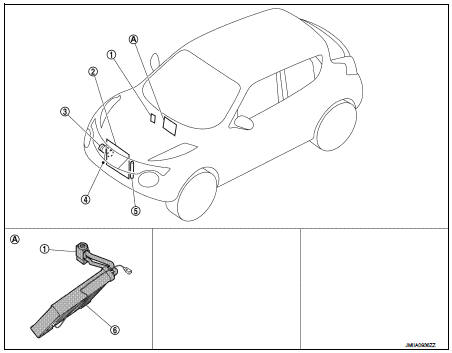

Component Parts Location
1. Expansion valve 2. Condenser 3. Compressor 4. Refrigerant pressure sensor 5. Liquid tank 6. Evaporator
A. Built-in heater & cooling unit assembly

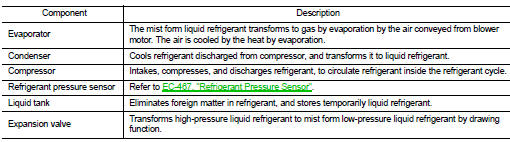

Component Description
System
System Diagram
System Description
REFRIGERANT CYCLE
Refrigerant Flow
The refrigerant from the compressor, flows the condenser with liquid tank, the
evaporator, and returns to the
compressor. ...
