Nissan Juke Service and Repair Manual : Component parts

Component Parts Location

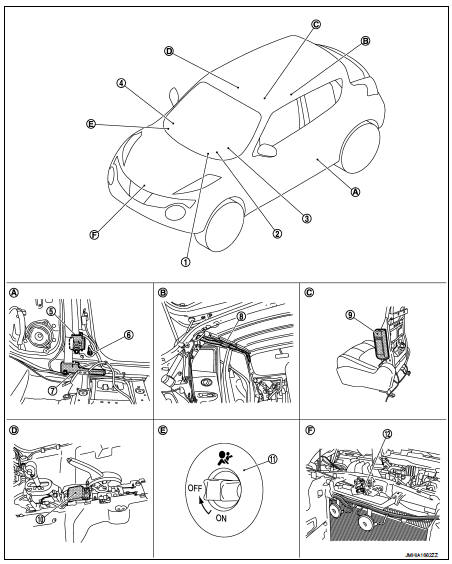

1. Combination meter


1. Combination meter Refer to MWI-4, "METER SYSTEM : Component Parts Location".

2. Combination switch (spiral cable) 3. Driver air bag module Crash zone sensor
4. Passenger air bag module 5. Seat belt pre-tensioner LH 6. Satellite sensor LH
7. Lap pre-tensioner LH 8. Curtain air bag module LH 9. Side air bag module LH 10. Air bag diagnosis sensor unit 11. Air bag cutoff switch 12. Crash zone sensor

A. Behind rear side finisher B. View with headlining assembly removed C. View with seatback pad removed D. View with center console assembly removed
E. View with glove box assembly open F. Radiator core support assembly

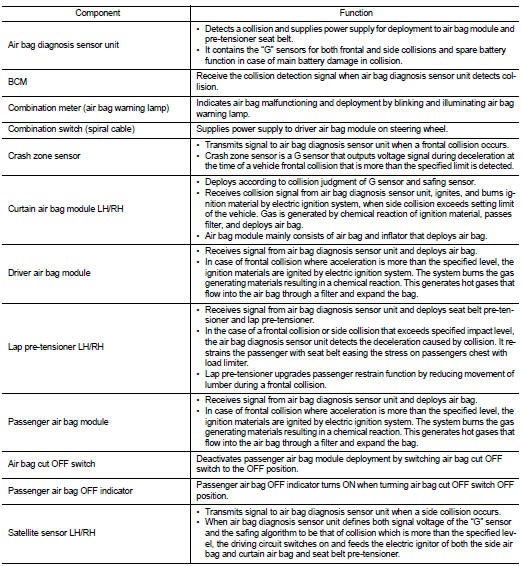

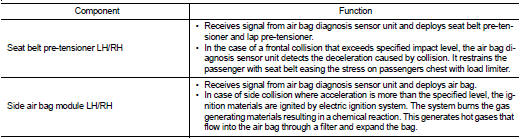

Component Description


System


    System
    System Diagram System Description Supplemental Restraint System (SRS) activates air bag module and seat belt pre-tensioner when it detects a frontal collision or a side collision that is more t ...
