Nissan Juke Service and Repair Manual : Combination meter

Reference Value

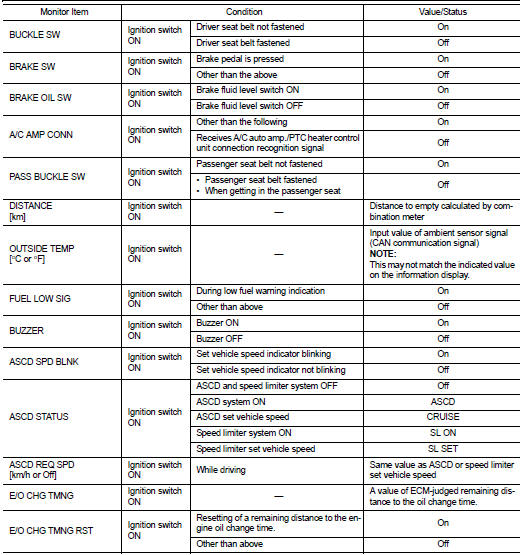

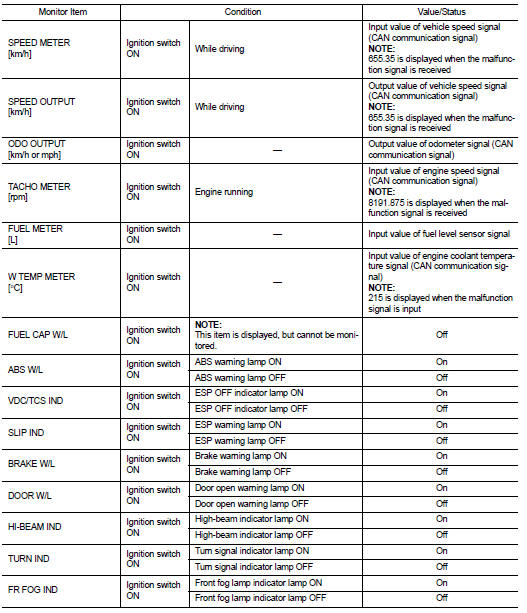

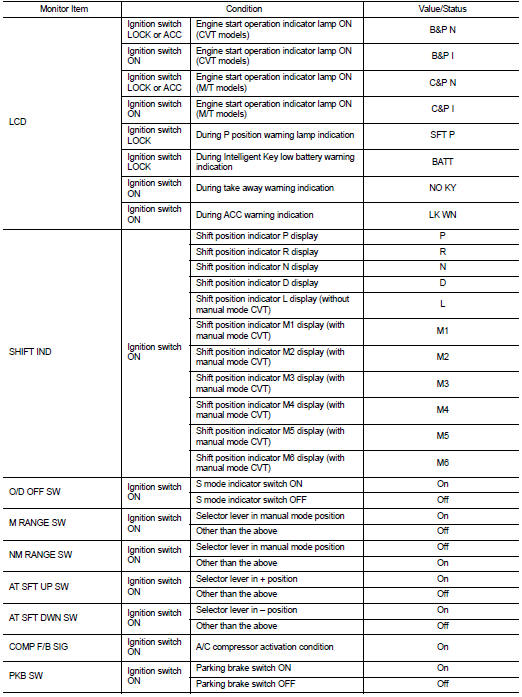

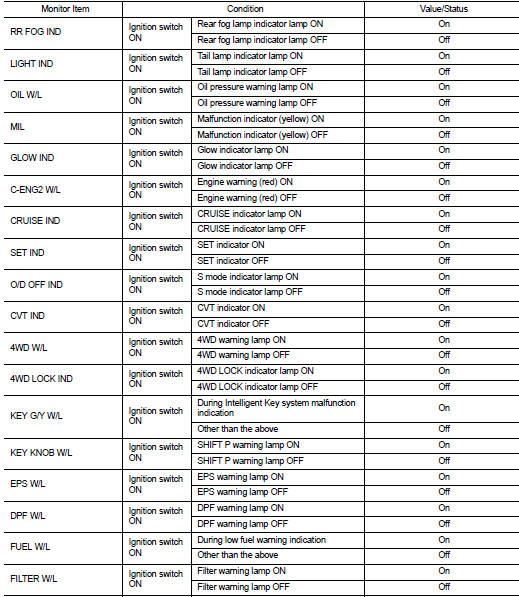

VALUES ON THE DIAGNOSIS TOOL




NOTE:


NOTE

:
Some items are not available according to vehicle specification.

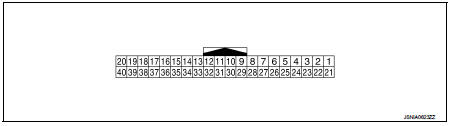

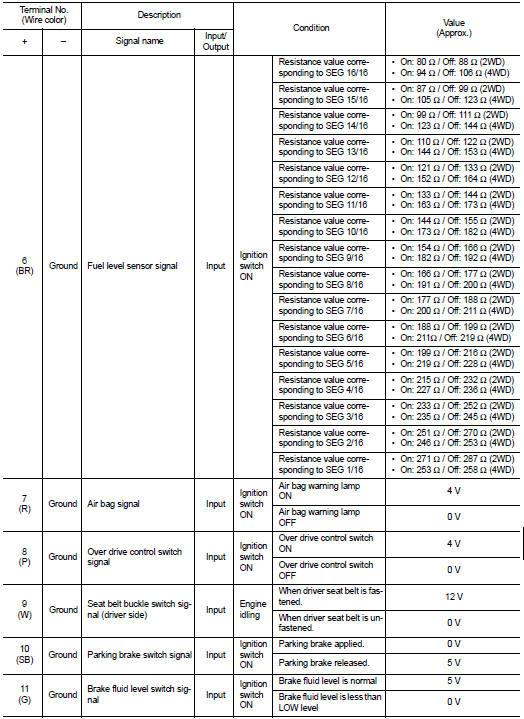

TERMINAL LAYOUT

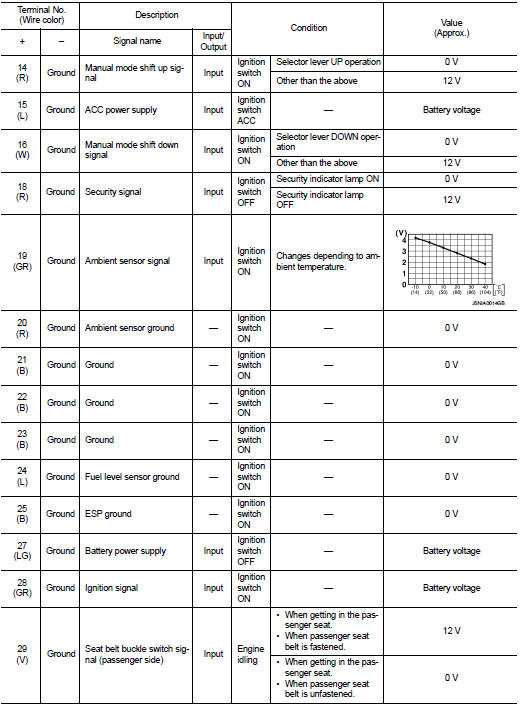

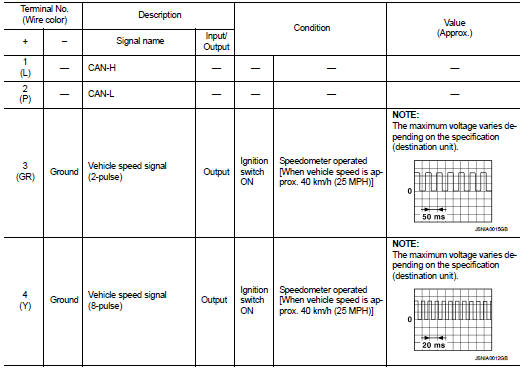

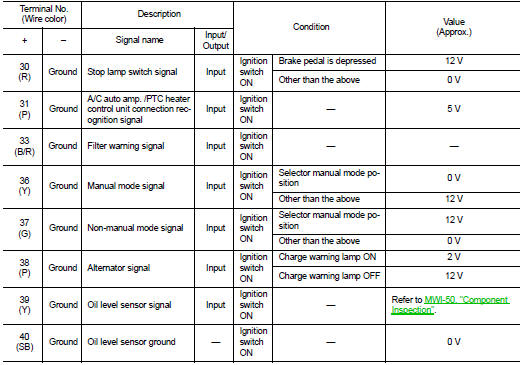

PHYSICAL VALUES


PHYSICAL VALUES




Fail-Safe


Fail-Safe

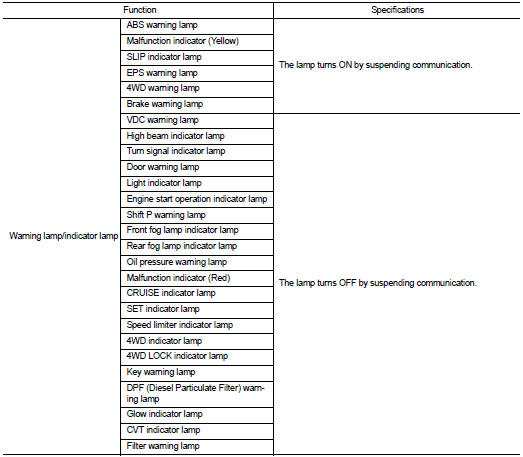

FAIL-SAFE

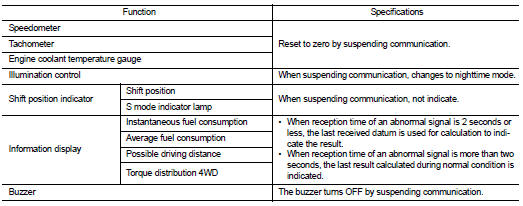

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

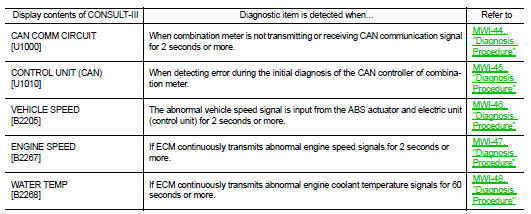

DTC Index


DTC Index


IPDM E/R


    IPDM E/R
    List of ECU Reference ...
