Nissan Juke Service and Repair Manual : A/C auto AMP.

Reference Value

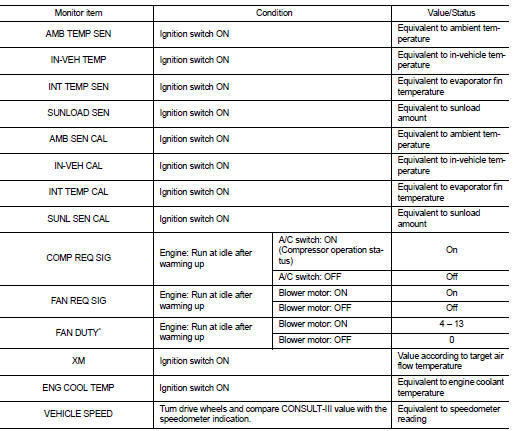

CONSULT-III DATA MONITOR REFERENCE VALUES

*: “DUTY” is displayed, but voltage is indicated. Or unit is not displayed


*: “DUTY” is displayed, but voltage is indicated. Or unit is not displayed but unit is (V).

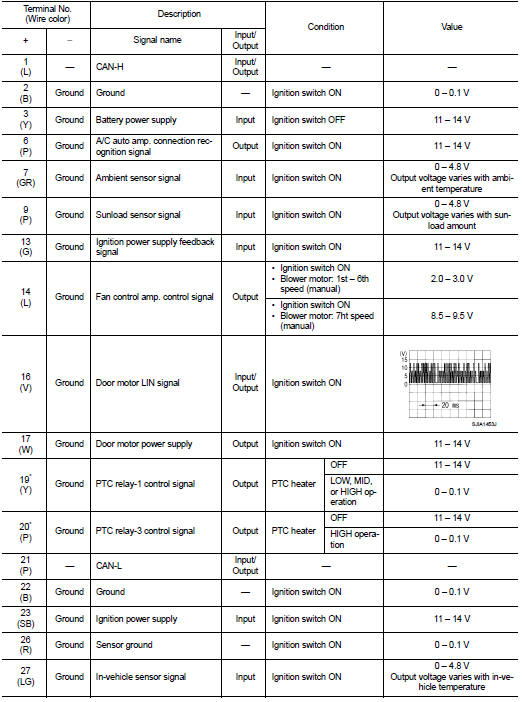

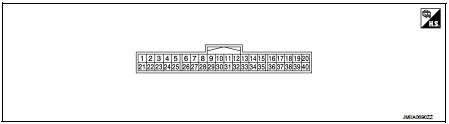

TERMINAL LAYOUT

PHYSICAL VALUES

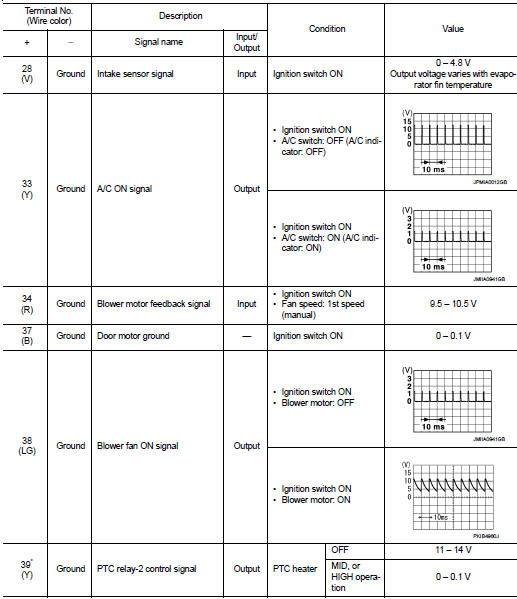

PHYSICAL VALUES


*: With K9K


*: With K9K

Fail-safe

FAIL-SAFE FUNCTION

If a communication error exists between the A/C auto amp. and multi display unit for 2 seconds or longer, air conditioning is controlled under the following conditions:

A/C display : OFF
Set temperature : Setting before communication error occurs Air outlet : AUTO
Air flow : AUTO
Air inlet : FRE (Fresh air intake) A/C switch : ON

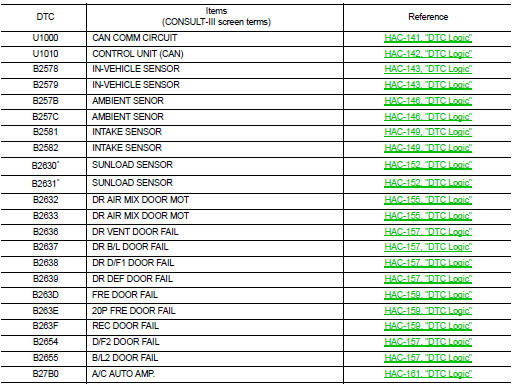

DTC Index

*: Perform self-diagnosis under sunshine. When performing indoors, aim a


*: Perform self-diagnosis under sunshine. When performing indoors, aim a light (more than 60 W) at sunload sensor, otherwise self-diagnosis indicates even though the sunload sensor is functioning normally.

    Multi display unit, BCM, ECM, IPDM E/R
    List of ECU Reference ...
