Nissan Juke Service and Repair Manual : Wiper and washer system symptoms
With rain sensor

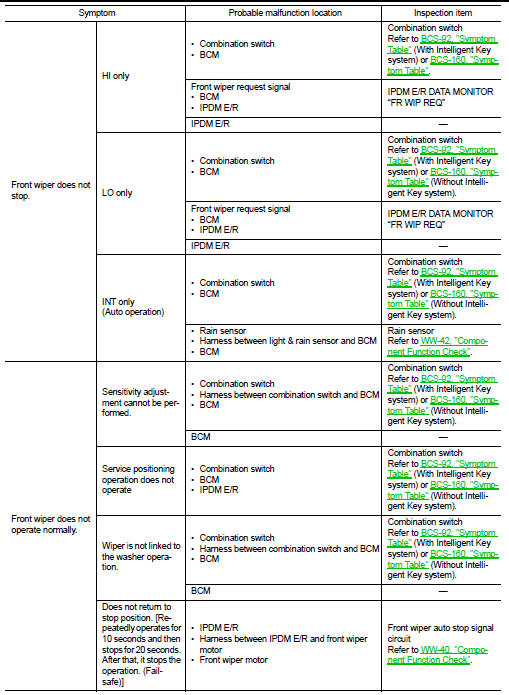

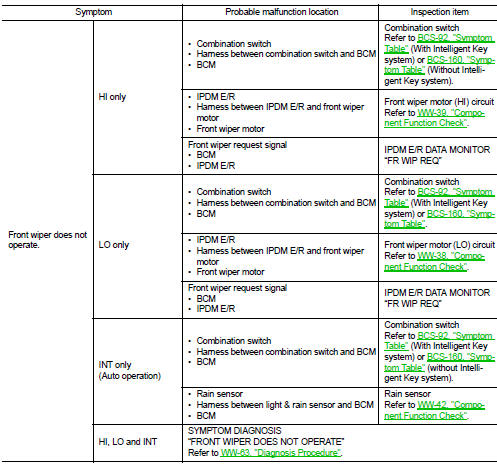

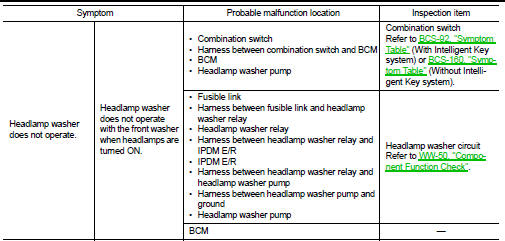

WITH RAIN SENSOR : Symptom Table
Without rain sensor

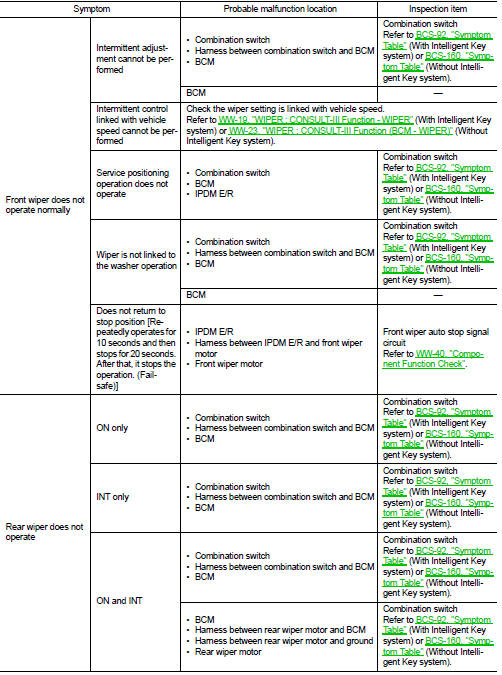

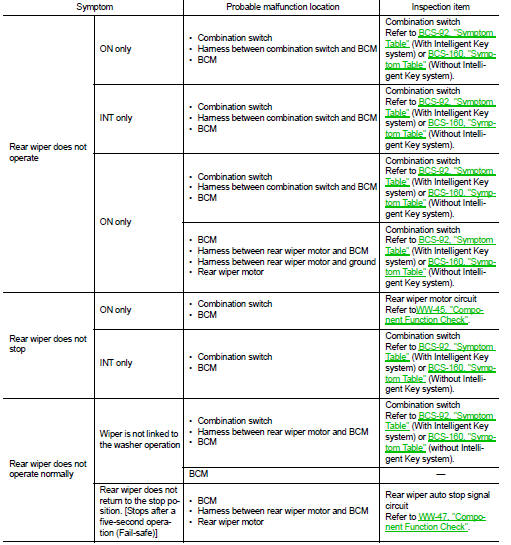

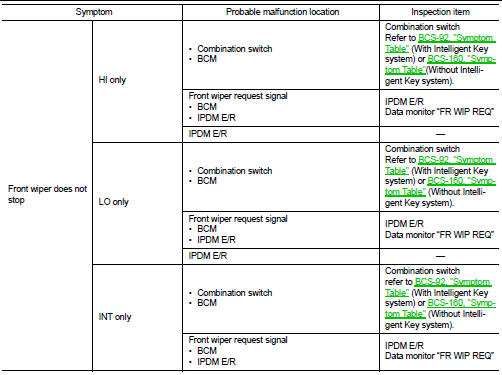

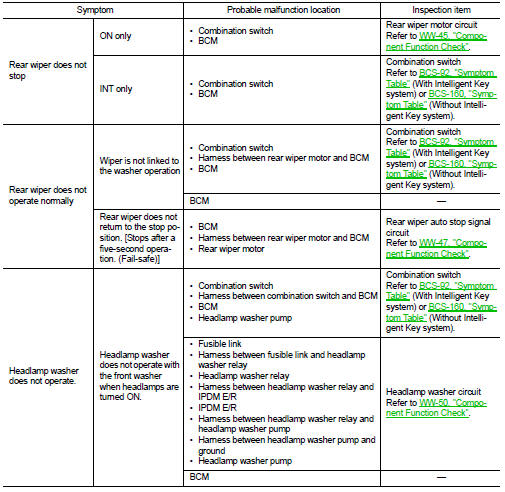

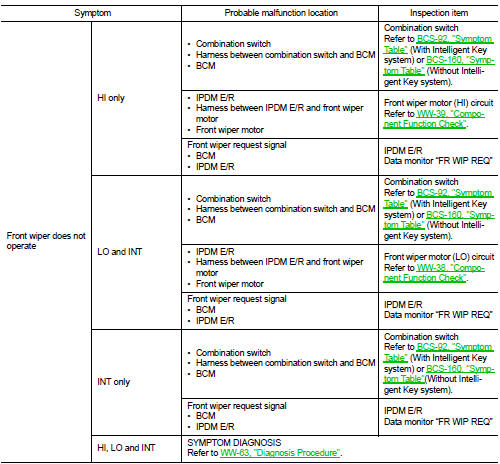

WITHOUT RAIN SENSOR : Symptom Table
Normal operating condition
Description
FRONT WIPER MOTOR PROTECTION FUNCTION
• IPDM E/R may stop the front wiper to protect the front wiper motor if any
obstruction (operation resistance)
such as a large amount of snow is ...
