Nissan Juke Service and Repair Manual : Tightening torque

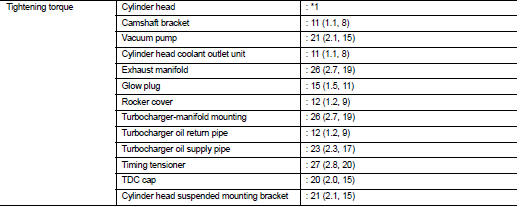

UPPER ENGINE

*1: Refer to tightening procedure in the text.


*1: Refer to tightening procedure in the text.

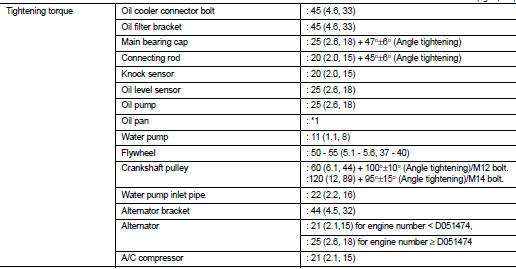

BOTTOM ENGINE

*1: Refer to tightening procedure in the text.


*1: Refer to tightening procedure in the text.
