Nissan Juke Service and Repair Manual : System setting

Temperature Setting Trimmer

DESCRIPTION

If the temperature felt by the customer is different from the air flow temperature controlled by the temperature setting, the A/C auto amp. control temperature can be adjusted to compensate for the temperature setting.

HOW TO SET

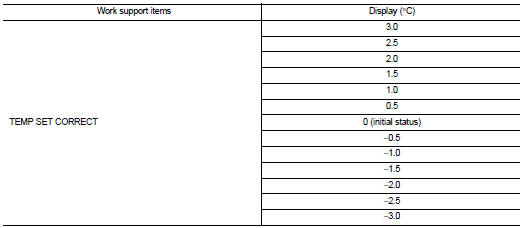

Perform “TEMP SET CORRECT” of HVAC work support item.With CONSULT-III


Perform “TEMP SET CORRECT” of HVAC work support item.

NOTE:


NOTE

:
• When −3.0°C is corrected on the temperature setting set as 25.0°C the temperature controlled by A/C auto amp. is 25.0°C −3.0°C = 22.0°C and the temperature becomes lower than the temperature setting.

• When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V or less, the setting of the difference between the set temperature and control temperature may be cancelled.

Inlet Port Memory Function (REC)

DESCRIPTION

• If the ignition switch is turned to the OFF position while the intake switch is set to ON (recirculation), “Perform the memory” or “Do not perform the memory” of intake switch ON (recirculation) condition can be selected.

• If “Perform the memory” was set, the intake switch will be ON (recirculation) when turning the ignition switch to the ON position again.

• If “Do not perform the memory” was set, the air inlets will be controlled automatically when turning the ignition switch to the ON position again.

HOW TO SET

Perform the “REC MEMORY SET” of HVAC work support item.With CONSULT-III


Perform the “REC MEMORY SET” of HVAC work support item.

NOTE:


NOTE

:
When the battery cable is disconnected from the negative terminal or

Inlet Port Memory Function (FRE)

DESCRIPTION

• If the ignition switch is turned to the OFF position while the intake switch is set to OFF (fresh air intake), “Perform the memory” or “Do not perform the memory” of intake switch OFF (fresh air intake) condition can be selected.

• If “Perform the memory” was set, the intake switch will be OFF (fresh air intake) when turning the ignition switch to the ON position again.

• If “Do not perform the memory” was set, the air inlets will be controlled automatically when turning the ignition switch to the ON position again.

HOW TO SET

Perform the “FRE MEMORY SET” of HVAC work support item.With CONSULT-III


Perform the “FRE MEMORY SET” of HVAC work support item.

NOTE:


NOTE

:
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V or less, the setting of the FRE memory function may be cancelled.

Foot Position Setting Trimmer

DESCRIPTION

In FOOT mode, the air blowing to DEF can change ON/OFF.

HOW TO SET

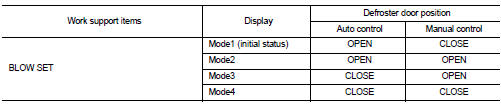

Perform the “BLOW SET” of HVAC work support item.With CONSULT-III


Perform the “BLOW SET” of HVAC work support item.

NOTE:


NOTE

:
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V or less, the setting of the discharge air mix ratio in FOOT mode may be cancelled.

    Operation inspection
    Work Procedure The purpose of the operational check is to check that the individual system operates normally. Check condition : Engine running at normal operating temperature. 1.CHECK MEMORY FUNC ...

    Door motor starting position reset
    Description • Reset signal is transmitted from A/C auto amp. to air mix door motor and mode door motor. Starting position reset can be performed. NOTE: During reset, DEF switch indicator blink ...
