Nissan Juke Service and Repair Manual : Rear wiper motor

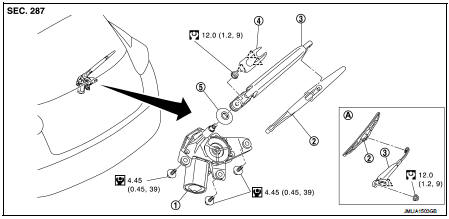

Exploded View

1. Rear wiper motor


1. Rear wiper motor
2. Rear wiper blade
3. Rear wiper arm
4. Rear wiper arm cover 5. Rear wiper pivot seal

A : Model for cold areas

: N·m (kg-m, in-lb): Pawl
: N·m (kg-m, ft-lb): N·m (kg-m, in-lb)
Removal and Installation: N·m (kg-m, ft-lb)


Removal and Installation

REMOVAL

1. Remove rear wiper arm. Refer to WW-84, "Removal and Installation".

2. Remove back door lower finisher. Refer to INT-35, "BACK DOOR LOWER FINISHER : Removal and Installation".

3. Disconnect rear wiper motor connector.

4. Remove rear wiper motor mounting bolts.

5. Remove rear wiper motor from the vehicle.

6. Remove the pivot seal.

INSTALLATION

Install in the reverse order of removal.
