Nissan Juke Service and Repair Manual : Rear window defogger system

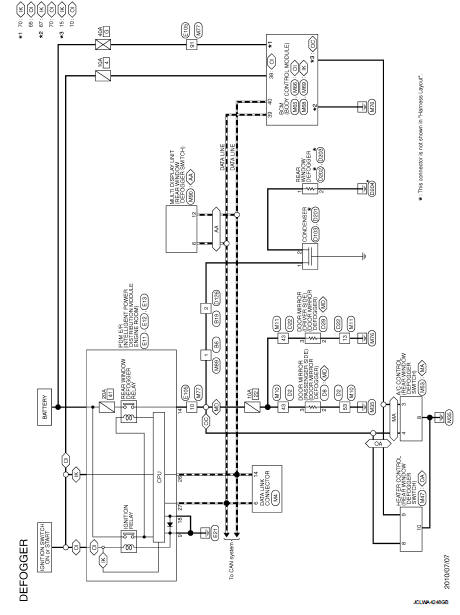

Wiring Diagram - DEFOGGER CONTROL SYSTEM -

For connector terminal arrangements, harness layouts, and alphabets in a described in wiring diagram), refer to GI-12, "Connector Information/Explanation(option abbreviation; if not
described in wiring diagram), refer to GI-12, "Connector Information/Explanation of Option Abbreviation".

Symptom diagnosis


    Rear window defogger on signal
    With auto A/C WITH AUTO A/C : Description Turns the indicator lamp in the rear window defogger switch ON when operating the rear window defogger WITH AUTO A/C : Component Function Check 1.CHECK ...
