Nissan Juke Service and Repair Manual : Power supply routing circuit

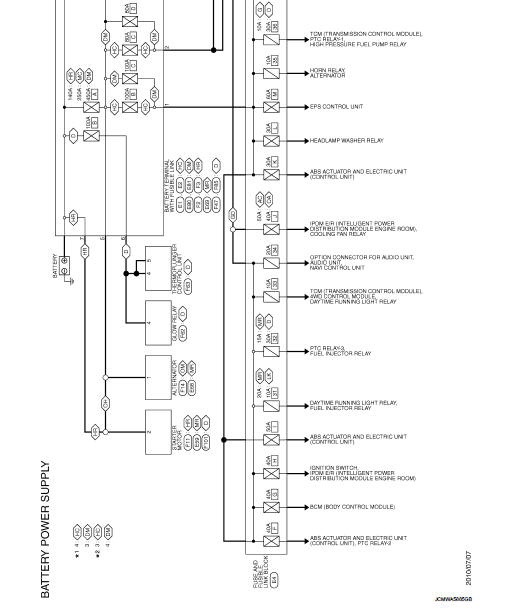

Wiring Diagram - Battery power supply -

For connector terminal arrangements, harness layouts, and alphabets in a described in wiring diagram), refer to GI-12, "Connector Information/Explanation(option abbreviation; if not
described in wiring diagram), refer to GI-12, "Connector Information/Explanation of Option Abbreviation".

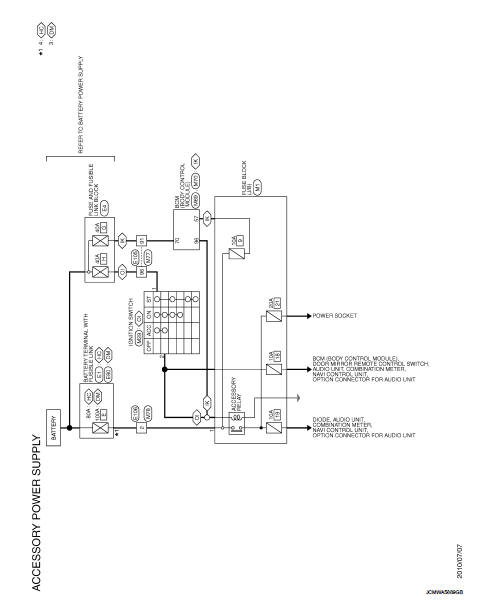

Wiring Diagram - Accessory power supply -


Wiring Diagram - Accessory power supply -

For connector terminal arrangements, harness layouts, and alphabets in a described in wiring diagram), refer to GI-12, "Connector Information/Explanation(option abbreviation; if not
described in wiring diagram), refer to GI-12, "Connector Information/Explanation of Option Abbreviation".

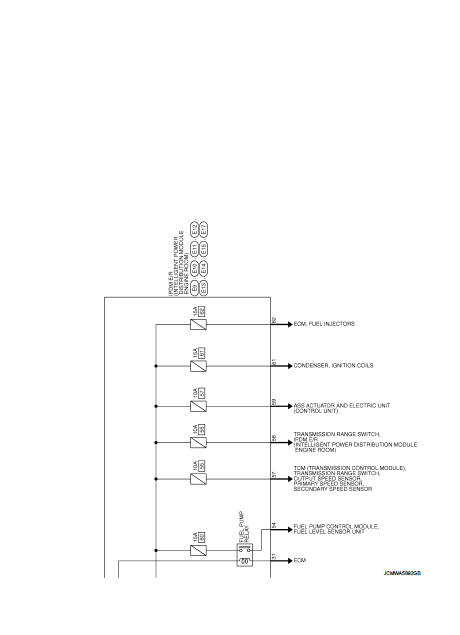

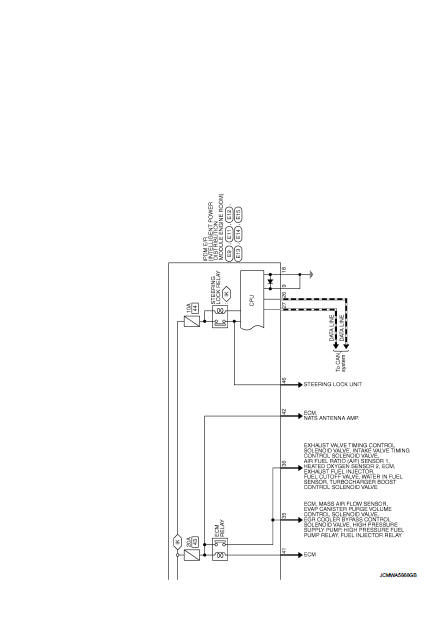

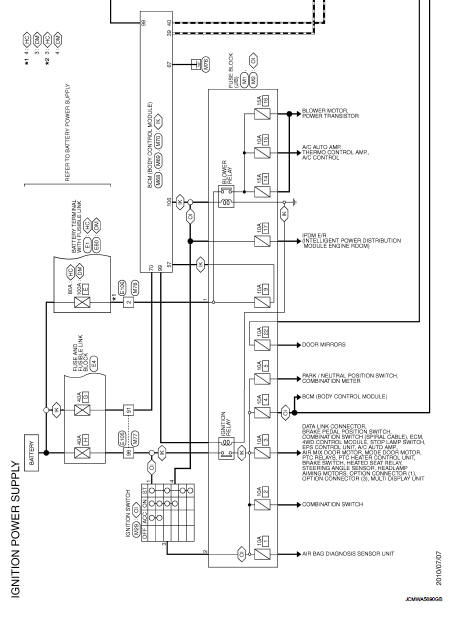

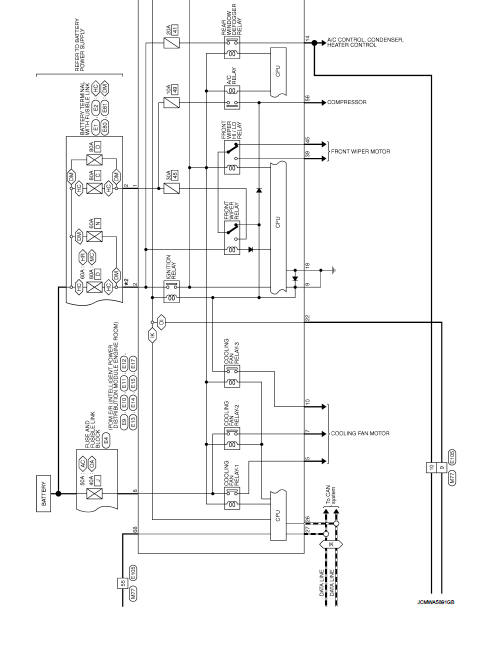

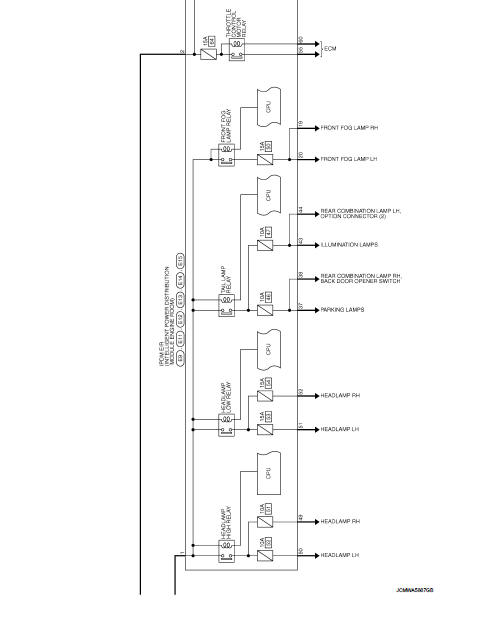

Wiring Diagram - Ignition power supply -


Wiring Diagram - Ignition power supply -

For connector terminal arrangements, harness layouts, and alphabets in a described in wiring diagram), refer to GI-12, "Connector Information/Explanation (option abbreviation; if not
described in wiring diagram), refer to GI-12, "Connector Information/Explanation of Option Abbreviation".

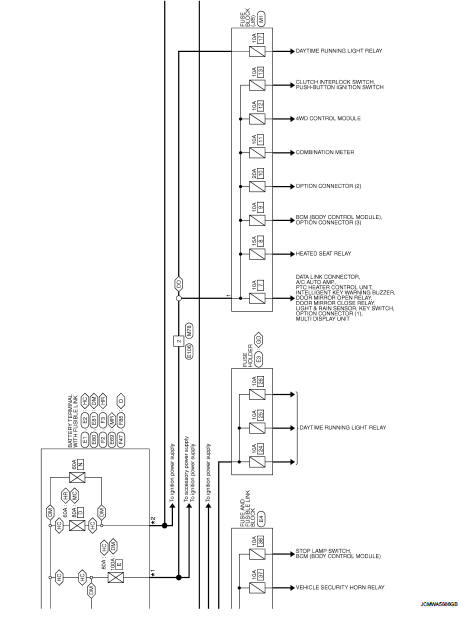

Option harness


    Option harness
    Wiring Diagram For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to GI-12, "Connector Information/Explan ...
