Nissan Juke Service and Repair Manual : P1574 ASCD vehicle speed sensor

Description

The ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from combination meter, and the other is from TCM (Transmission control module). The ECM uses these signals for ASCD control. Refer to EC-477, "AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System Description" for ASCD functions.

DTC Logic

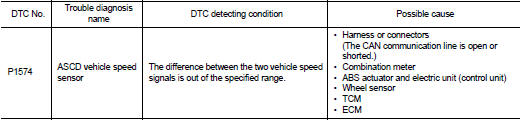

DTC DETECTION LOGIC

NOTE

:
• If DTC P1574 is displayed with DTC U1001, first perform the trouble diagnosis for DTC U1001. Refer to EC-569, "DTC Logic".

• If DTC P1574 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer to EC-685, "DTC Logic".

• If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500. Refer to EC-672, "DTC Logic".

• If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to EC-683, "DTC Logic".

DTC CONFIRMATION PROCEDURE


DTC CONFIRMATION PROCEDURE

1.PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine (ESP switch OFF).

2. Drive the vehicle at more than 40 km/h (25 MPH).

CAUTION:
Always drive vehicle at a safe speed.

NOTE:

This procedure may be conducted with the drive wheels lifted in the shop or by driving the vehicle.

If a road test is expected to be easier, it is unnecessary to lift the vehicle.

3. Check DTC.

Is DTC detected? YES >> Go to EC-723, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.CHECK DTC WITH TCM

Check DTC with TCM. Refer to TM-171, "DTC Index".

Is the inspection result normal

YES >> GO TO 2.

NO >> Perform trouble shooting relevant to DTC indicated.

2.CHECK DTC WITH ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Check DTC with ABS actuator and electric unit (control unit). Refer to BRC-142, "DTC Index".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace.

3.CHECK DTC WITH COMBINATION METER

Check DTC with combination meter. Refer to MWI-36, "DTC Index".

>> INSPECTION END
