Nissan Juke Service and Repair Manual : Manual air conditioning system

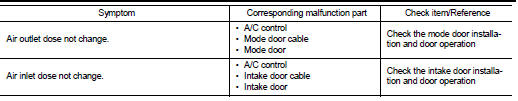

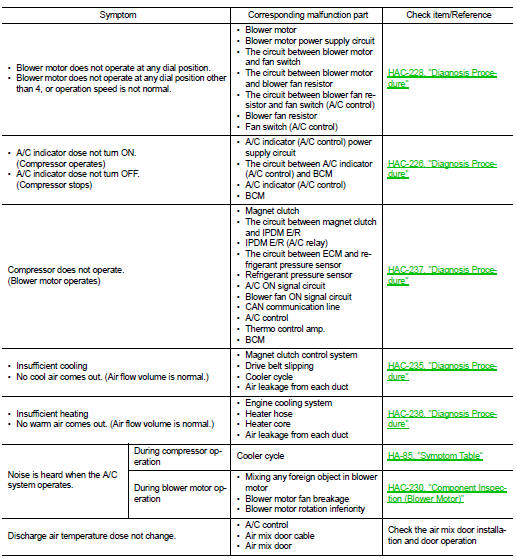

Symptom Table
NOTE
:
Perform self-diagnosis with CONSULT-III before performing the symptom diagnosis.
If any malfunction result
or DTC is detected, perform the corresponding diagnosis.
Insufficient cooling
Description
Symptom
• Insufficient cooling
• No cool air comes out. (Air flow volume is normal.)
Diagnosis Procedur
NOTE:
Perform self-diagnosis with CONSULT-III before performing symptom diagno ...
