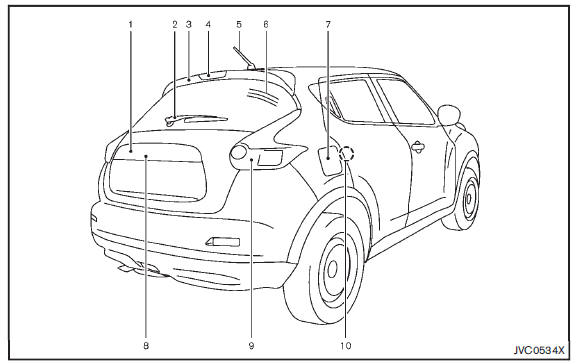

Nissan Juke Owners Manual : Exterior rear
1. Lift gate
— Intelligent Key system
2. Rear window wiper and washer
— Switch operation
— Window washer fluid
3. Rear spoiler
4. High-mounted stop light
5. Antenna
— Satellite radio antenna
6. Rear window defroster
7. Fuel-filler door
— Operation
— Fuel recommendation
8. RearView camera
9. Rear combination lights
— Bulb replacement
10. Child safety rear door lock
: if so equipped
Exterior front
1. Hood
2. Windshield wiper and washer
— Switch operation
— Blade replacement
— Window washer fluid
3. Parking lights, turn signal lights and front side marker lights
— Switch operation
...
Exterior (NISMO models)
For NISMO models, the vehicle parts listed below require special care or caution
for cleaning. Refer to the additional information in each section.
1. Front bumper (, )
2. Daytime running light ...
