Nissan Juke Service and Repair Manual : Exploded View

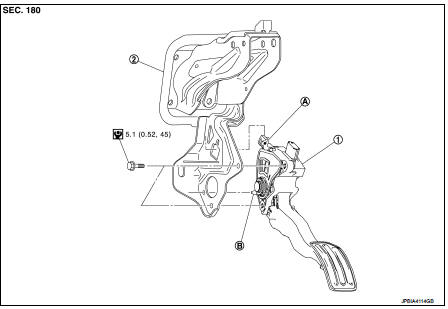

1. Accelerator pedal assembly


1. Accelerator pedal assembly 2. Brake pedal bracket

A. Locating hook B. Locating pin

Removal and Installation: N·m (kg-m, in-lb)


    Removal and installation
    ACCELERATOR CONTROL SYSTEM ...

    Removal and Installation
    REMOVAL 1. Disconnect accelerator pedal position sensor harness connector. 2. Loosen mounting bolts, and remove accelerator pedal assembly. CAUTION: • Never disassemble accelerator pedal assembl ...
