Exploded View - Removal and installation - Exhaust system HR16DE

Nissan Juke Service and Repair Manual : Exploded View

Nissan Juke Service and Repair Manual / Exhaust system HR16DE / Removal and installation / Exploded View

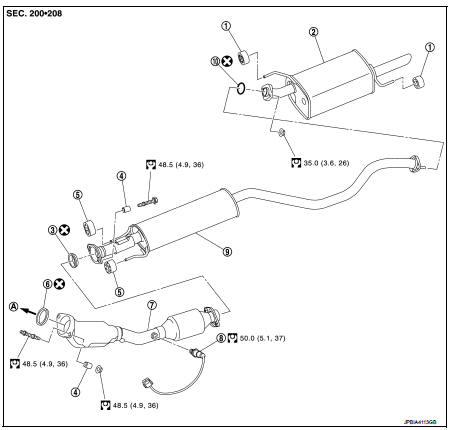

1. Mounting rubber

1. Mounting rubber
2. Main muffler
3. Seal bearing
4. Spring
5. Mounting rubber
6. Seal bearing
7. Exhaust front tube
8. Heated oxygen sensor 2 9. Sub muffler 10. Gasket

: Always replace after every
disassembly.

Removal and Installation : N·m (kg-m, ft-lb)

REMOVAL • Disconnect each joint and mounting. • Remove heated oxygen sensor 2 with following procedure: - Using heated oxygen sensor wrench [SST: KV10114400] (A), removal heated oxygen sensor 2 (1 ...
