Nissan Juke Service and Repair Manual : Diagnosis system (navi control unit)
Diagnosis Description

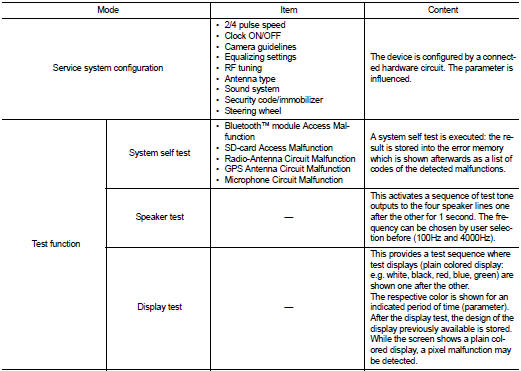

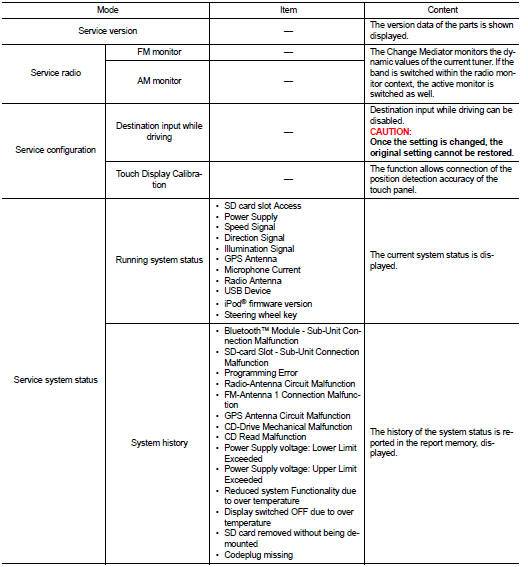

On-Board Diagnosis Item • On-board diagnosis is performed in service test mode.
• On-board diagnosis checks if the system operates normally.
Service test mode
METHOD OF STARTING
1. Start the engine.
2. Turn OFF audio.
3. While pressing the “SET UP” switch, turn the MENU dial counterclockwise 3 clicks or more first, then clockwise and counterclockwise 3 clicks or more, respectively. (After the diagnosis mode starts, the initial screen of the diagnosis mode appears.)
END ON-BOARD DIAGNOSIS
Turn OFF ignition switch
System
System Diagram
System Description
Refer to Owner’s Manual for navigation and audio system operating
instructions.
Audio function and display are built into NAVI control unit.
This navigati ...
