Nissan Juke Service and Repair Manual : Diagnosis system (IPDM E/R)

Consult-III Function (IPDM E/R)

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC RESULT


SELF DIAGNOSTIC RESULT

Refer to PCS-25, "DTC Index".

DATA MONITOR

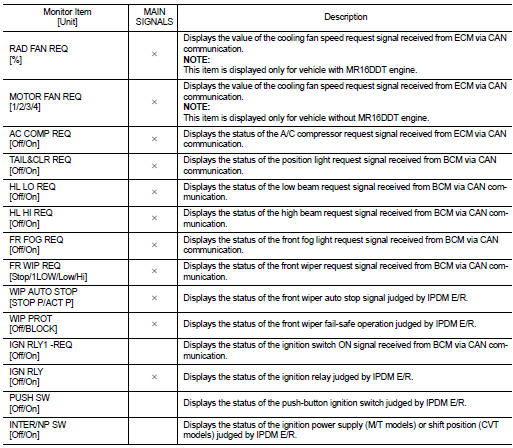

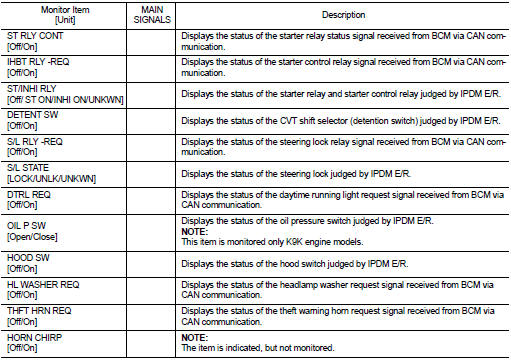

Monitor item


ACTIVE TEST


ACTIVE TEST

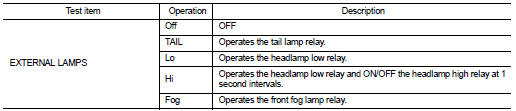

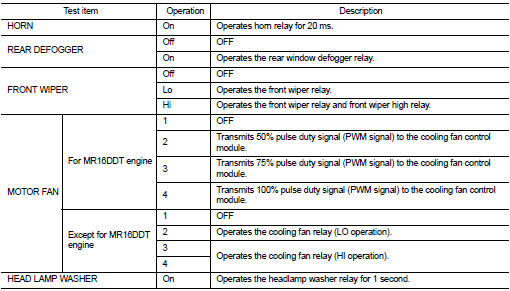

Test item


ECU diagnosis information
