Nissan Juke Service and Repair Manual : Diagnosis system (BCM) (without intelligent key system)

Description

Air conditioning system performs self-diagnosis, operation check, function diagnosis, and various settings using diagnosis function of each control unit.

Common item : consult-III Function (BCM - COMMON ITEM)


Common item : consult-III Function (BCM - COMMON ITEM)

APPLICATION ITEM

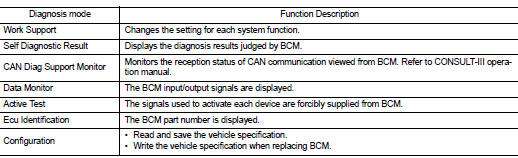

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION


SYSTEM APPLICATION

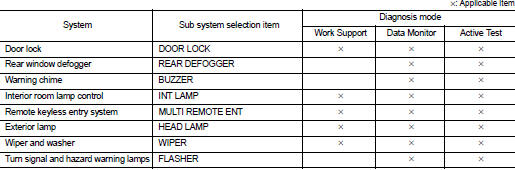

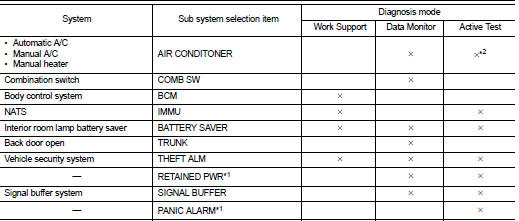

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.


• *1: This item is displayed, but is not used.


• *1: This item is displayed, but is not used.

• *2: For models with automatic A/C, this mode is not used.

Air conditioner : consult-III Function (BCM - AIR CONDITIONER) (Manual A/ C 4WD Models)

DATA MONITOR

Display item list

ACTIVE TEST


ACTIVE TEST

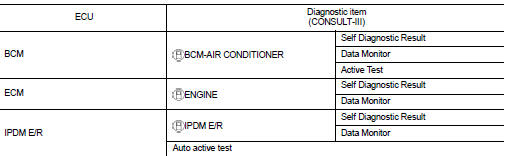

ECU diagnosis information
