Nissan Juke Service and Repair Manual : Diagnosis system (BCM) (without intelligent key system)

Common item : consult-III Function (BCM - COMMON ITEM)

APPLICATION ITEM

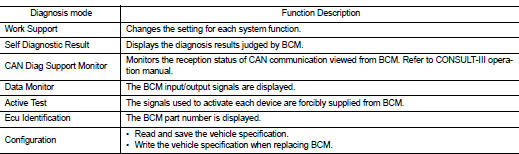

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION


SYSTEM APPLICATION

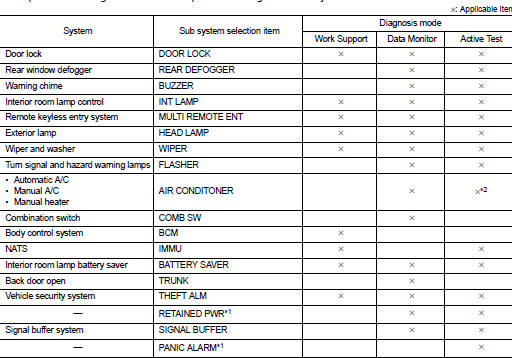

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.

• *1: This item is displayed, but is not used.


• *1: This item is displayed, but is not used.

• *2: For models with automatic A/C, this mode is not used.

Air conditioner : consult-III Function (BCM - AIR CONDITIONER) (Automatic A/C 2WD Models)

DATA MONITOR

Display Item List

ECU diagnosis information


    Diagnosis system (BCM) (with intelligent key system)
    Common item : consult-III Function (BCM - COMMON ITEM) APPLICATION ITEM CONSULT-III performs the following functions via CAN communication with BCM. SYSTEM APPLICATION BCM can perform the follow ...
