Nissan Juke Service and Repair Manual : Diagnosis and repair workflow

Work F

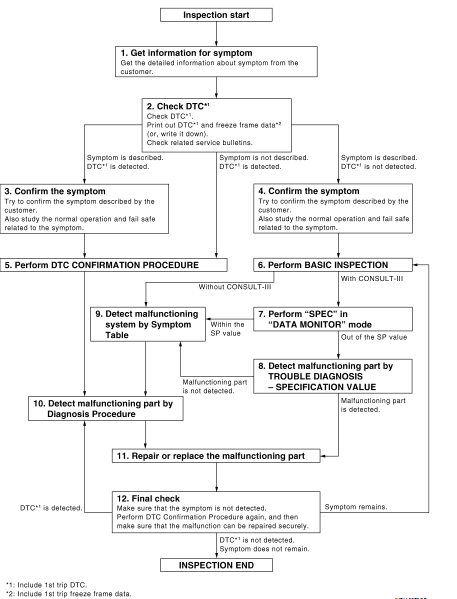

OVERALL SEQUENCE

DETAILED FLOW


DETAILED FLOW

1.GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when the incident/malfunction occurred) using the “Diagnostic Work Sheet”. (Refer to EC-127, "Diagnostic Work Sheet".)

>> GO TO 2.

2.CHECK DTC

2. Perform the following procedure if DTC is displayed.

- Record DTC and freeze frame data. (Print them out using CONSULT-III or GST.) - Erase DTC.

and 1st Trip DTC” in EC-83, "CONSULT-III Function".With CONSULT-III :“How to Erase DTC
and 1st Trip DTC” in EC-83, "CONSULT-III Function".

Self-diagnostic Results” in EC-79, "On Board Diagnosis Function".Without CONSULT-III : “How to Erase
Self-diagnostic Results” in EC-79, "On Board Diagnosis Function".

- Study the relationship between the cause detected by DTC and the symptom described by the customer.

(Symptom Table is useful. Refer to EC-437, "Symptom Table".)

3. Check related service bulletins for information.

Is any symptom described and is any DTC detected?

Symptom is described, DTC is detected>>GO TO 3.

Symptom is described, DTC is not detected>>GO TO 4.

Symptom is not described, DTC is detected>>GO TO 5.

3.CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer (except MIL ON).

Also study the normal operation and fail safe related to the symptom. Refer to EC-442, "Description" and EC- 104, "Fail Safe".

Diagnosis Work Sheet is useful to verify the incident.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Also study the normal operation and fail safe related to the symptom. Refer to EC-442, "Description" and EC- 104, "Fail Safe".

Diagnosis Work Sheet is useful to verify the incident.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the displayed DTC, and then make sure that DTC is detected again.

If two or more DTCs are detected, refer to EC-106, "DTC Inspection Priority Chart" and determine trouble diagnosis order.

NOTE

:
• Freeze frame data is useful if the DTC is not detected.

• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during this check.

If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIRMATION PROCEDURE.

Is DTC detected? YES >> GO TO 10.

NO >> Check according to EC-108, "DTC Index".

6.PERFORM BASIC INSPECTION

Perform EC-129, "Work Procedure".

Do you have CONSULT-III? YES >> GO TO 7.

NO >> GO TO 9.

7.PERFORM SPEC IN DATA MONITOR MODE

Make sure that “MAS A/F SE-B1”, “B/FUEL SCHDL” and “A/F ALPHA-B1” are withinWith CONSULT-III


Make sure that “MAS A/F SE-B1”, “B/FUEL SCHDL” and “A/F ALPHA-B1” are within the SP value using CONSULT- III in “SPEC” of “DATA MONITOR” mode. Refer to EC-147, "Component Function Check".

Is the measurement value within the SP value? YES >> GO TO 9.

NO >> GO TO 8.

8.DETECT MALFUNCTIONING PART BY TROUBLE DIAGNOSIS - SPECIFICATION VALUE

Detect malfunctioning part according to EC-148, "Diagnosis Procedure".

Is malfunctioning part detected? YES >> GO TO 11.

NO >> GO TO 9.

9.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to EC-437, "Symptom Table" based on the confirmed symptom in step 4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 10.

10.DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.

NOTE

:
The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection is also required for the circuit check in the Diagnosis Procedure. For details, refer to Circuit Inspection in GI- 44, "Circuit Inspection".

Is malfunctioning part detected? YES >> GO TO 11.

NO >> Monitor input data from related sensors or check the voltage of related ECM terminals using CONSULT- III. Refer to EC-90, "Reference Value".

11.REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replacement.

3. Check DTC. If DTC is displayed, erase it. Refer to the following.

DTC and 1st Trip DTC” in EC-83, "CONSULT-III Function". With CONSULT-III :“How to Erase
DTC and 1st Trip DTC” in EC-83, "CONSULT-III Function".

Self-diagnostic Results” in EC-79, "On Board Diagnosis Function". Without CONSULT-III :“How to Erase
Self-diagnostic Results” in EC-79, "On Board Diagnosis Function".

>> GO TO 12.

12.FINAL CHECK

When DTC was detected in step 2, perform DTC CONFIRMATION PROCEDURE or Component Function Check again, and then make sure that the malfunction have been repaired securely.

When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure that the symptom is not detected.

Is DTC detected and does symptom remain? YES-1 >> DTC is detected: GO TO 10.

YES-2 >> Symptom remains: GO TO 6.

NO-1 >> returning the vehicle to the customer, make sure to erase unnecessary With CONSULT-III :Before
returning the vehicle to the customer, make sure to erase unnecessary DTC in ECM and TCM (Transmission Control Module). (Refer to “How to Erase DTC and 1st

Trip DTC” in EC-83, "CONSULT-III Function".) If the completion of SRT is needed, drive vehicle under the specific DRIVING PATTERN in EC-142, "Description".

NO-2 >> :Before returning the vehicle to the customer, make sure to erase unnecessary Without CONSULT-III
:Before returning the vehicle to the customer, make sure to erase unnecessary DTC in ECM and TCM (Transmission Control Module). (Refer to “How to Erase Self-diagnostic Results” in EC-79, "On Board Diagnosis Function".) If the completion of SRT is needed, drive vehicle under the specific DRIVING PATTERN inEC-142, "Description".

Diagnostic Work Sheet

DESCRIPTION

There are many operating conditions that lead to the malfunction of engine components. A good grasp of such conditions can make troubleshooting faster and more accurate.

In general, each customer feels differently about a incident. It is important to fully understand the symptoms or conditions for a customer complaint.

Utilize a diagnostic worksheet like the one on the next page in order to organize all the information for troubleshooting.

Some conditions may cause the MIL to come on steady or blink and DTC to be detected. Examples: Vehicle ran out of fuel, which caused the engine to misfire.

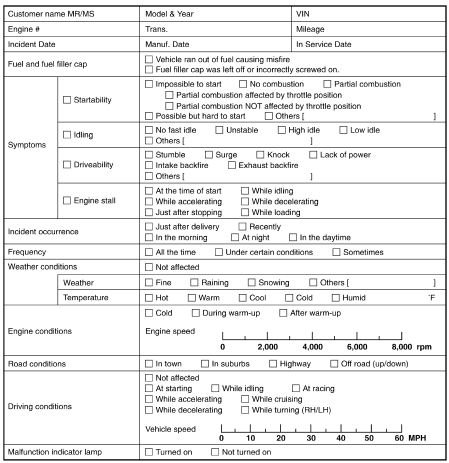

WORKSHEET SAMPLE


WORKSHEET SAMPLE
