Nissan Juke Service and Repair Manual : Configuration (bcm)

Description

Vehicle specification needs to be written with CONSULT-III because it is not written after replacing BCM.

Configuration has three functions as follows.

NOTE

:
Manual setting item: Items which need selection by vehicle specifications Automatic setting item: Items which are written in automatically (Setting can not be changed)

CAUTION:
• When replacing BCM, you must perform “WRITE CONFIGURATION” with CONSULT-III.

• Complete the procedure of “WRITE CONFIGURATION” in order.

• If you set incorrect “WRITE CONFIGURATION”, incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• Never perform “WRITE CONFIGURATION” when performing operations other than the below.

- Replacing with new BCM - Changing “SECURITY ALARM SET(SIREN)” of work support from ON to OFF*

NOTE:

*: Perform configuration in “WRITE CONFIGURATION - Manual selection” after performing this work support.

Work Procedure

1.WRITING MODE SELECTION

Select “CONFIGURATION” of BCM.CONSULT-III Configuration


Select “CONFIGURATION” of BCM.

When writing saved data>>GO TO 2.

When writing manually>>GO TO 3.

2.PERFORM “WRITE CONFIGURATION - CONFIG FILE”

Perform “WRITE CONFIGURATION - Config file”.CONSULT-III Configuration


Perform “WRITE CONFIGURATION - Config file”.

>> WORK END

3.PERFORM “WRITE CONFIGURATION - MANUAL SELECTION”

1. Select "WRITE CONFIGURATION - Manual selection".CONSULT-III Configuration


1. Select "WRITE CONFIGURATION - Manual selection".

2. Identify the correct model and configuration list. Refer to BCS-152, "Configuration list".

3. Confirm and/or change setting value for each item.

CAUTION:
Thoroughly read and understand the vehicle specification. Incorrect settings may result in abnormal control of ECU.

4. Select "SETTING".

CAUTION:
Make sure to select “SETTING” even if the indicated configuration of brand new BCM is same as the desirable configuration. If not, configuration which is set automatically by selecting vehicle model can not be memorized.

5. When "COMMAND FINISHED", select "END".

>> GO TO 4.

4.OPERATION CHECK

Confirm that each function controlled by BCM operates normally.

>> WORK END

Configuration list

CAUTION:
Thoroughly read and understand the vehicle specification. Incorrect settings may result in abnormal control of ECU.

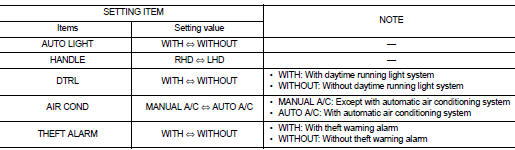

2WD MODELS

⇔: Items which confirm vehicle specifications

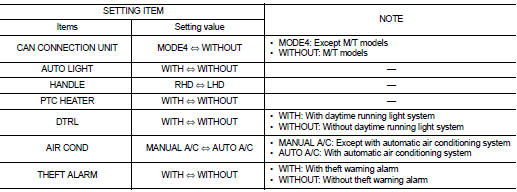

⇔: Items which confirm vehicle specifications 4WD MODELS

⇔: Items which confirm vehicle specifications


⇔: Items which confirm vehicle specifications

    Additional service when replacing control unit
    Description BEFORE REPLACEMENT When replacing BCM, save or print current vehicle specification with CONSULT-III configuration before replacement. NOTE: If “READ CONFIGURATION” can not be used ...
