Nissan Juke Service and Repair Manual : Component parts

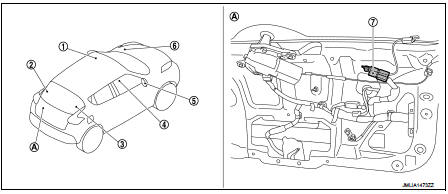

Component Parts Location

1. BCM


1. BCM Refer to BCS-6, "BODY CONTROL SYSTEM : Component Parts Location" (With Intelligent Key system) or BCS-96, "BODY CONTROL SYSTEM : Component Parts Location" (Without Intelligent Key system).

2. Rear window defogger connector 3. Rear window defogger connector 4. Multidisplay unit*1 A/C control*2 Heter control*3 (Rear window defogger switch) 5. Door mirror defogger 6. IPDM E/R Refer to PCS-5, "Component Parts Location" (With Intelligent Key system) or PCS-37, "Component Parts Location" (Without Intelligent Key system).

7. Condenser

*1: With automatic A/C *2: With manual A/C
*3: Without A/C

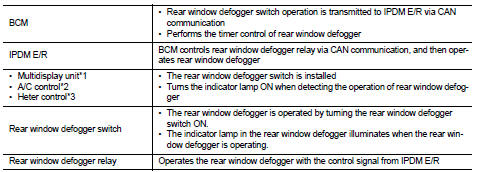

Component Description


*1: With automatic A/C


*1: With automatic A/C *2: With manual A/C
*3: Without A/C

    System
    WITH AUTO A/C WITH AUTO A/C : System Diagram WITH AUTO A/C : System Description OPERATION DESCRIPTION • BCM detects that the rear window defogger switch turns ON when the ignition switch is ON ...
