Nissan Juke Service and Repair Manual : Component parts

INTERIOR LIGHTING SYSTEM

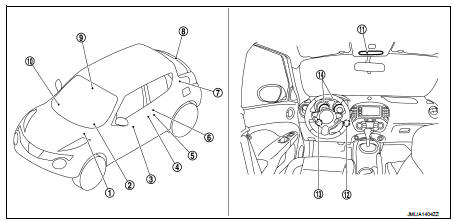

INTERIOR LIGHTING SYSTEM : Component Parts Location

1. IPDM E/R


1. IPDM E/R Refer to PCS-5, "Component Parts Location"
2. BCM Refer to BCS-6, "BODY CONTROL SYSTEM : Component Parts Location" 3. Door lock and unlock switch 4. Front door request switch (driver side)
5. Front door lock assembly (driver side) ( unlock sensor)
6. Door switch
7. Luggage room lamp
8. Back door switch
9. Light & rain sensor 10. Remote keyless entry receiver Refer to DLK-21, "Component Parts Location" 11. Map lamp
12. Push-button ignition switch 13. Key switch
14. Combination meter

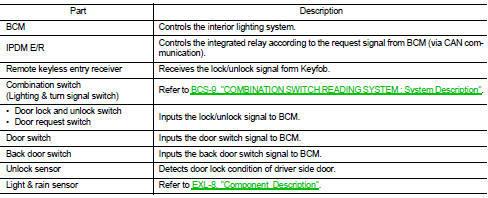

INTERIOR LIGHTING SYSTEM : Component Description

System


    System
    Interior room lamp control system INTERIOR ROOM LAMP CONTROL SYSTEM : System Diagram INTERIOR ROOM LAMP CONTROL SYSTEM : System Description OUTLINE • Interior room lamps* are controlled by inter ...
