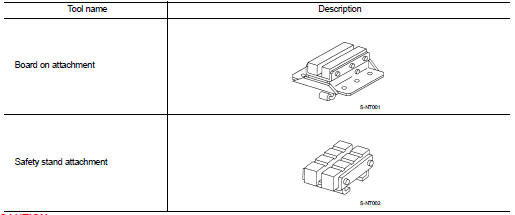

Nissan Juke Service and Repair Manual : Commercial Service Tools
CAUTION:
• Every time the vehicle is lifted up, maintain the complete vehicle curb
condition.
• Since the vehicle's center of gravity changes when removing main parts on the front side (engine, transmission, suspension etc.), support a jack up point on the rear side garage jack with a mission jack or equivalent.
• Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle, suspension, etc.), support a jack up point on the front side garage jack with a mission jack or equivalent.
• Be careful not to smash or never do anything that would affect piping parts.
Lifting point
...
Garage Jack and Safety Stand and 2-Pole Lift
WARNING:
• Park the vehicle on a level surface when using the jack. Check to avoid
damaging pipes, tubes, etc.
under the vehicle.
• Never get under the vehicle while it is supported only by the ...
