Nissan Juke Service and Repair Manual : Blower fan resistor

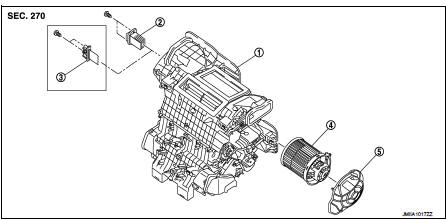

Exploded View

1. A/C unit assembly


1. A/C unit assembly 2. Fan control amp.*1
3. Blower fan resistor*2 4. Blower motor
5. Blower motor cover

• *1: Automatic air conditioner • *2: Manual air conditioner

Removal and Installation

REMOVAL

1. Remove instrument panel assembly. Refer to IP-13, "Removal and Installation".

2. Disconnect blower fan resistor connector.

3. Remove fixing screws (A), and then remove blower fan resistor (1).

INSTALLATION


INSTALLATION

Install in the reverse order of removal.
