Nissan Juke Service and Repair Manual : Antenna feeder

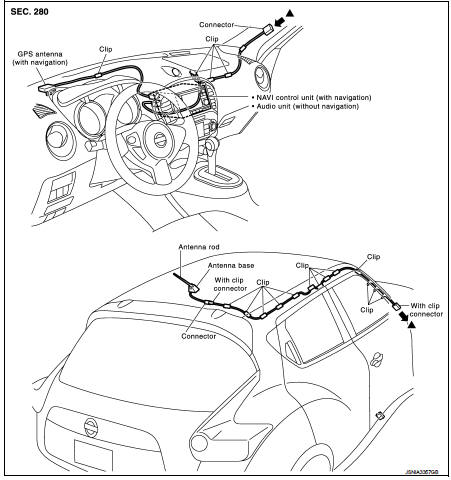

Feeder Layout

Audio, Visual & Navigation System Audio with navigation


    USB connector and aux jack
    Removal and Installation REMOVAL 1. Remove cluster tray. Refer to IP-12, "Exploded View". 2. Push the pawl from the back of cluster tray to remove USB connector and AUX jack. INSTALL ...
