Nissan Juke Service and Repair Manual : Headlamp aiming switch

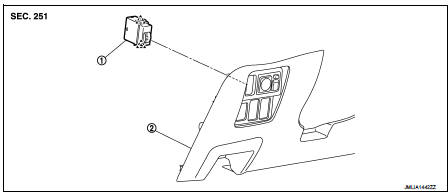

Exploded View
1. Headlamp aiming switch 2. Instrument lower panel assembly LH
: Pawl
Removal and Installation
REMOVAL
1. Remove instrment lower panel (LH/RH). Refer to IP-13, "Removal and Installation".
2. Remove headlamp aiming switch fixing clips, and then remove headlamp aiming switch from instrument lower panel (LH/RH).
INSTALLATION
Install in the reverse order of removal.
